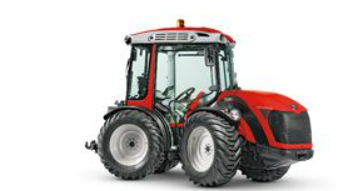

Antonio Carraro SRX 7800 – 4WD Articulated Reversible Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
SRX 7800 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar Tier 4 Final, 4 Cylinders, 16 Valves, 3319 cm³, Common Rail Injection, Natural Induction |
|
Maximum Horsepower |
70.3 HP (51.7 kW) @ 2200 RPM |
|
Maximum Torque |
235 Nm @ 1625 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse with Synchronized Shuttle Reverser, Hydraulic Clutch |
|
Clutch |
Hydraulic |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Front and Rear Final Drive (4WD, Equal Wheels, 45º Angle), Electro-Hydraulic Disengagement Control |
|
Braking System |
Hydraulic Front/Rear Oil-Bath Disc Brakes, Emergency and Parking Brake Band Type on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
9.5 R20 (Adjustable Rims) |
|
Tyre Size (Rear, Standard) |
9.5 R20 (Adjustable Rims) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent and Ground Speed, 540/540e RPM with Progressive Electro-Hydraulic Engagement, Type 100 |
|
Hydraulic System |
3 Distributors (2 Double-Acting, 1 Single-Acting), 1 Oil Reflow, 2 Lubrication Oil Pumps, Hydraulic Power Lift with Adjustable Category 2 3-Point Linkage |
|
Rear 3-Point Hitch |
Category 2, Adjustable Width, 5292 lb Capacity |
|
Steering |
Hydraulic with 2 Cylinders, Adjustable Steering Wheel |
|
Electrical System |
Battery Isolation Switch, Digital Multifunctional Dashboard with Diagnostic Function, Rear Working Light |
|
Weight |
Shipping: 4322 lb (Roll Bar), 4630 lb (Cab) |
|
Cab Options |
Starlight (Air-Conditioned, Tapered Profile) or Protector (Super-Low-Profile, Category 1 or Category 4 Pressurized) |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Width |
1059 mm (41.7 in) |
