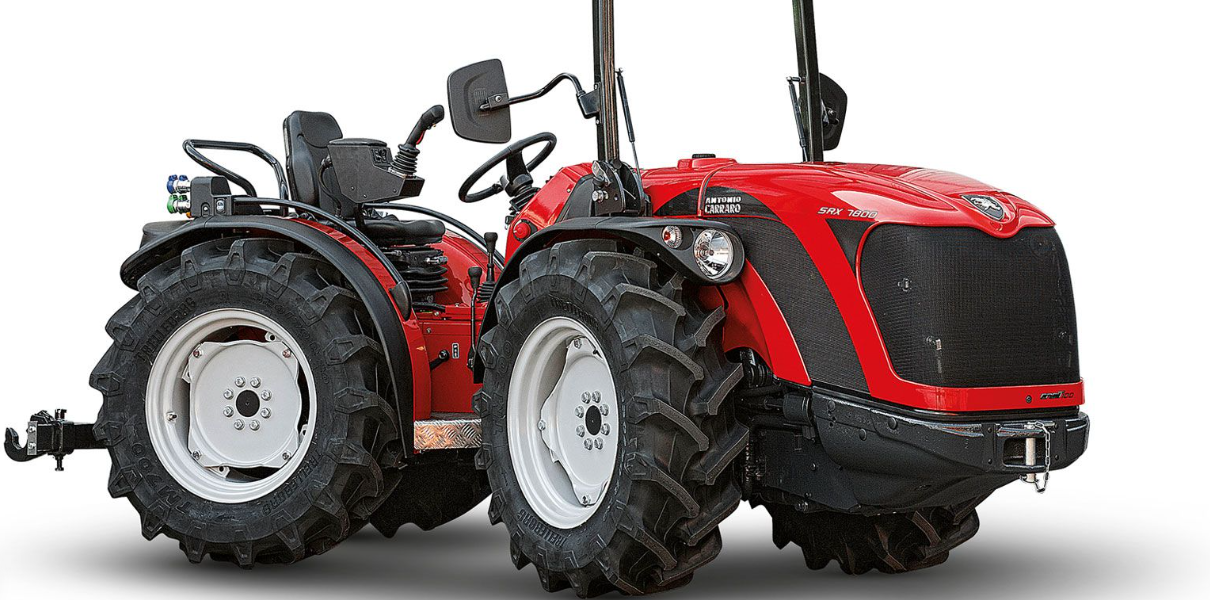

Antonio Carraro SRX 7800 – 4WD Utility Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
SRX 7800 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Nurseries, Narrow Crop Rows, Sloping Terrain |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 3319 cm³, Common Rail Direct Injection, Stage 5 |
|
Maximum Horsepower |
70.3 HP (51.7 kW) @ 2500 RPM |
|
Maximum Torque |
236 Nm @ 1600 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter, RGS™ Reversible Drive System |
|
Clutch |
Mechanic Control, No Adjustment Required |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Articulated, Isodiametric, 15° Longitudinal Oscillation |
|
Differential Lock |
Electro-Hydraulic Control, Front and Rear or Rear Only |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Front and Rear Oil-Immersed Disc Brakes, Band-Type Emergency and Parking Brake on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
320/70 R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Progressive Electro-Hydraulic Engagement, Synchronized with Gear Speeds |
|
Hydraulic System |
2 Separate Hydraulic Pumps, 3-Lever Ancillary System, 160 bar Operating Pressure, Optional JPM Proportional Joystick |
|
Rear 3-Point Hitch |
Category 1 and 2, 2400 kg (5291 lb) Capacity, Adjustable Lifting Arms with Quick-Release Laterally Moving Couplings |
|
Steering |
Hydraulic, Adjustable Steering Wheel, RGS™ Reversible Drive System |
|
Electrical System |
Multifunctional Digital Console, Battery, Battery Isolation Switch, Electrical Power Point, Safe Start System |
|
Weight |
1960 kg (4321 lb, Roll-Bar); 2100 kg (4630 lb, StarLight Cab) |
|
Cab Options |
Optional StarLight Cab, Soundproofed, Air-Conditioned, Roof Window, Optional Activated Carbon Filter, Suspended on Silent Blocks |
|
Ground Clearance |
237 mm (9.3 in) |
|
Fuel Tank Capacity |
50 l (13.2 gal) |
|
Wheelbase |
1250 mm (49.2 in) |
|
Width |
1225 mm (48.2 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
