Specification

Details

Tractor Model

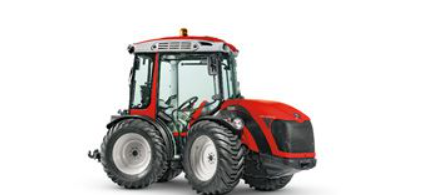

SR 7600 Infinity (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Vineyards, Orchards, Narrow Crop Rows, Steep Slopes, Greenhouses

Specification

Details

Engine

Kohler Tier 4 Final, 4 Cylinders, 16 Valves, 2482 cm³, Common Rail Injection, Turbo Intercooler

Maximum Horsepower

75 HP (55.4 kW) @ 2200 RPM

Maximum Torque

295 Nm @ 1500 RPM

Transmission Type

Hydrostatic with Continual Speed Variation, 3 Electric Shift-on-the-Go Ground Speeds, 2 Mechanical Speed Ranges (Work and Travel), Electro-Hydraulic Reverser, Automatic Transmission, Intellifix, Fast Reverse, Dual Memo Cruise Control, 3 Drive Modes, Anti-Stall Functions, Eco System for 20" Tires

Clutch

Hydraulic

Specification

Details

Front Axle

Four Equal Wheel Drive, Front and Rear Final Drive (45º Angle), Electro-Hydraulic Disengagement Control

Braking System

Hydraulic Front/Rear Oil-Bath Disc Brakes, Emergency and Parking Brake Band Type on Transmission

Specification

Details

Tyre Size (Front, Standard)

9.5 R20 (Adjustable Rims)

Tyre Size (Rear, Standard)

9.5 R20 (Adjustable Rims)

Specification

Details

PTO Type

Independent and Ground Speed, 540/540e RPM with Progressive Electro-Hydraulic Engagement, Settable in Normal or Plus Position

Hydraulic System

2 Double-Acting Valves, 1 Single-Acting Valve, 1 Oil Reflow, 6 Rear Quick Couplings, 2 Lubrication Oil Pumps, Hydraulic Power Lift with Adjustable Category 2 3-Point Linkage

Rear 3-Point Hitch

Category 2, Adjustable Width, 5071 lb Capacity

Steering

Hydraulic, Adjustable Steering Wheel

Electrical System

Battery Isolation Switch, Digital Multifunctional Dashboard with Color Display, LED, and Diagnosis, Rear Working Light

Weight

Shipping: 4707 lb (Roll Bar)

Cab Options

Starlight (Air-Conditioned, Tapered Profile) or Protector (Super-Low-Profile, Category 1 or Category 4 Pressurized)

Warranty

2 Years, Extendable to 4 Years

Width

1062 mm (41.8 in)
