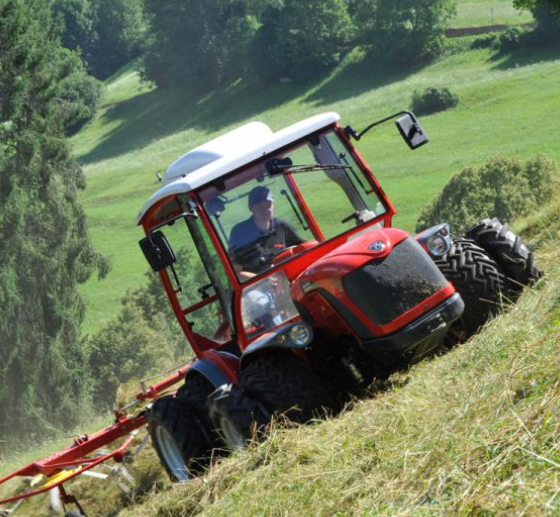

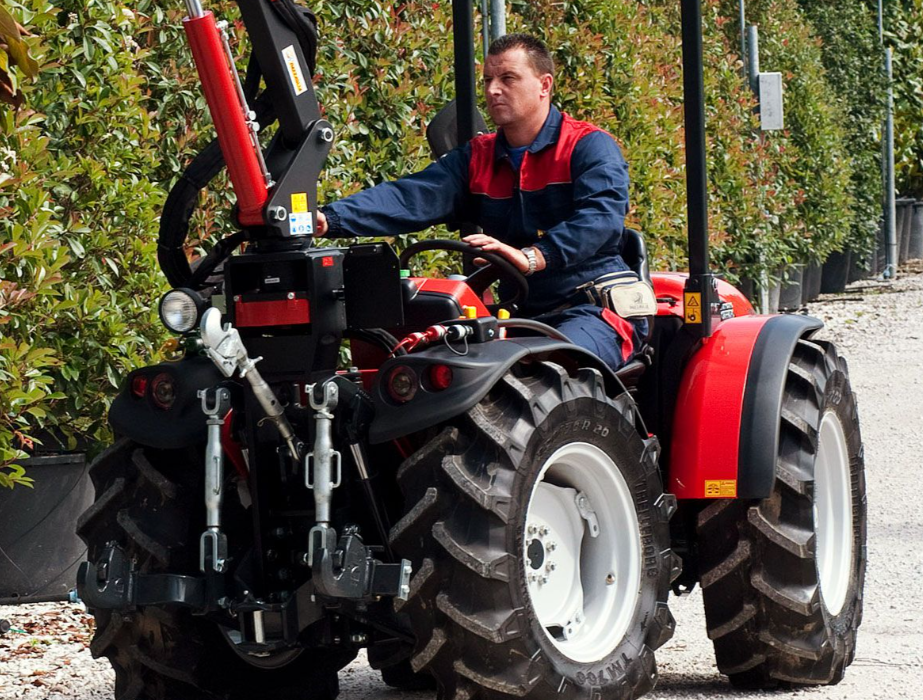

Antonio Carraro SR 7600 Infinity – 4WD Utility Tractor for Vineyards and Greenhouses
Specifications
|
Specification |
Details |
|
Tractor Model |
SR 7600 Infinity (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Greenhouses, Narrow Crop Rows, Urban Areas, Sports Grounds |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler, 4 Cylinders, 16 Valves, 2482 cm³, Common Rail Direct Injection, Turbo with Intercooler, Stage V |
|
Maximum Horsepower |
75 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
310 Nm @ 1500 RPM |
|
Transmission Type |
Hydrostatic Stepless, 3 Hydraulic Ratios, 2 Mechanical Ranges (0-15 km/h, 0-40 km/h), Electro-Hydraulic Shuttle, RGS™ Reversible Drive System, Instant Cruise Control, Memo Cruise Control, Dual Memo Cruise Control, Intellifix, Fast Reverse, Drive Mode |
|
Clutch |
Hydrostatic Transmission |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Articulated, 15° Longitudinal Oscillation |
|
Differential Lock |
Electro-Hydraulic Control, Simultaneous Front and Rear or Rear Only |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Oil-Immersed Disc Brakes (Front and Rear), Rear Steering Brakes, Transmission Band Brake for Emergency and Parking |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
9.5 R20 |
|
Tyre Size (Optional) |
280/70 R18, 280/85 R20, 300/70 R20, 320/65 R18, 320/70 R20, 320/70 R20 Garden Pro, 33x12.50-15, 340/65 R18, 380/70 D15, 440/50 R17 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Optional 540/1000 RPM, Progressive Electro-Hydraulic Engagement, Synchronized Groundspeed |
|
Hydraulic System |
2 Independent Pumps, 2 Double-Acting Remote Valves (1 Float), 1 Single-Acting, 1 Oil Return, 6 Rear Hydraulic Couplers, Optional Electro-Proportional JPM Joystick, Up to 12 Rear Couplers, Optional 2 Front Couplers |
|
Rear 3-Point Hitch |
Category 1 and 2, 2300 kg (5071 lb) Capacity, Adjustable Lift Arms with Sliding Quick Hitches, Optional Uniflex Suspension, Optional Electronic Draft and Position Control |
|
Steering |
Hydraulic with 2 Pistons, RGS™ Reversible Drive System |
|
Electrical System |
Multifunctional Digital Display, Battery Disconnect, Safe Start System, Optional LED Work Lights (2 Front + 2 Rear) |
|
Weight |
2070-2288 kg (4564-5044 lb, Roll-Bar); 2250-2460 kg (4960-5423 lb, StarLight Cab) |
|
Cab Options |
Optional StarLight Cab, Soundproofed, Air-Conditioned, Opening Front and Rear Windows, Electric Wipers and Washers, 360° Visibility, Suspended on Silent Blocks, Optional Active Carbon Filters |
|
Ground Clearance |
180-320 mm (7.1-12.6 in, Depending on Tyres) |
|
Fuel Tank Capacity |
50 l (13.2 gal) |
|
Wheelbase |
1220 mm (48.0 in) |
|
Width |
835-1550 mm (32.9-61.0 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
