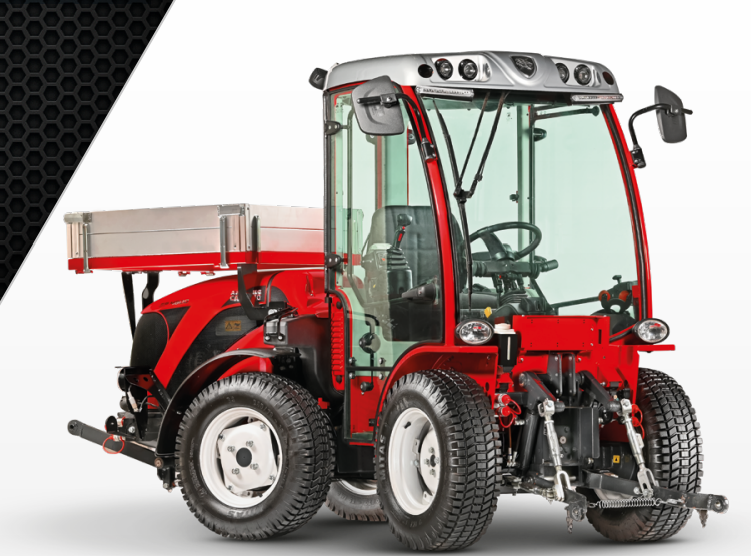

Antonio Carraro SP 4800 HST – 4WD Utility Tractor for Confined Spaces
Specifications
|
Specification |
Details |
|
Tractor Model |
SP 4800 HST (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Footpaths, Narrow Streets, Snow Clearing, Ski Slopes, Parks, Gardens |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 3 Cylinders, 1567 cm³, Supercharged, Common Rail Direct Injection, Turbo, Stage 5 |
|
Maximum Horsepower |
38.7 HP (28.5 kW) @ 2600 RPM |
|
Maximum Torque |
126 Nm @ 1690 RPM |
|
Transmission Type |
Hydrostatic with Hydraulic Control |
|
Clutch |
Hydraulic Control |
|
Frame |
ACTIO™ Integral Oscillating Frame, Articulated, Isodiametric |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Service Brake, Foot Operated, Acting on Rear Wheels, Optional on All Wheels, Mechanical Parking Brake, Lever Operated, Acting on Rear Wheels |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
240/70R15 |
|
Tyre Size (Optional) |
29x12.5-15 NHS PR6, 29x12.5-15, 6.5-16 8 PR |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540 RPM, Mechanical Control, Synchronized Groundspeed |
|
Hydraulic System |
2 Double-Acting Spool Valves with Floating Position at Front, 1 Replicated at Rear, Flow Control Valve for Hydraulic Motor, 1 Oil Return at Rear, Total 8 Quick-Release Couplings (4 Front, 4 Rear) |
|
Rear 3-Point Hitch |
Front Hydraulic Double-Acting, Double-Speed Lift and Lowering, Joystick-Controlled, Category 1 and 1N, 1100 kg (2425 lb) Capacity, Fixed Lifting Arms with Connecting Spring |
|
Steering |
Hydraulic Power Steering with 2 Cylinders and Load Sensing System |
|
Weight |
1430-1540 kg (3153-3395 lb, Roll-Bar) |
|
Cab Options |
Full Optional Cab |
|
Ground Clearance |
75 mm (3.0 in) |
|
Fuel Tank Capacity |
27 l (7.1 gal) |
|
Wheelbase |
1383 mm (54.4 in) |
|
Width |
1146 mm (45.1 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
