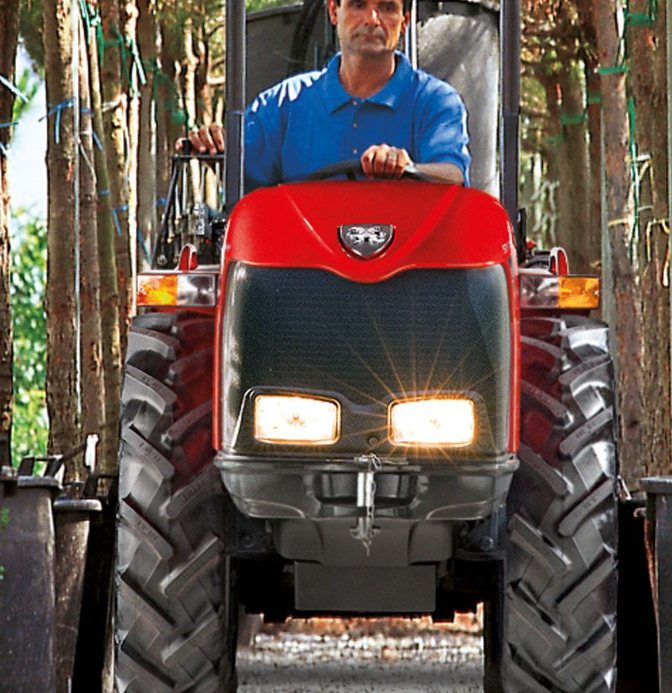

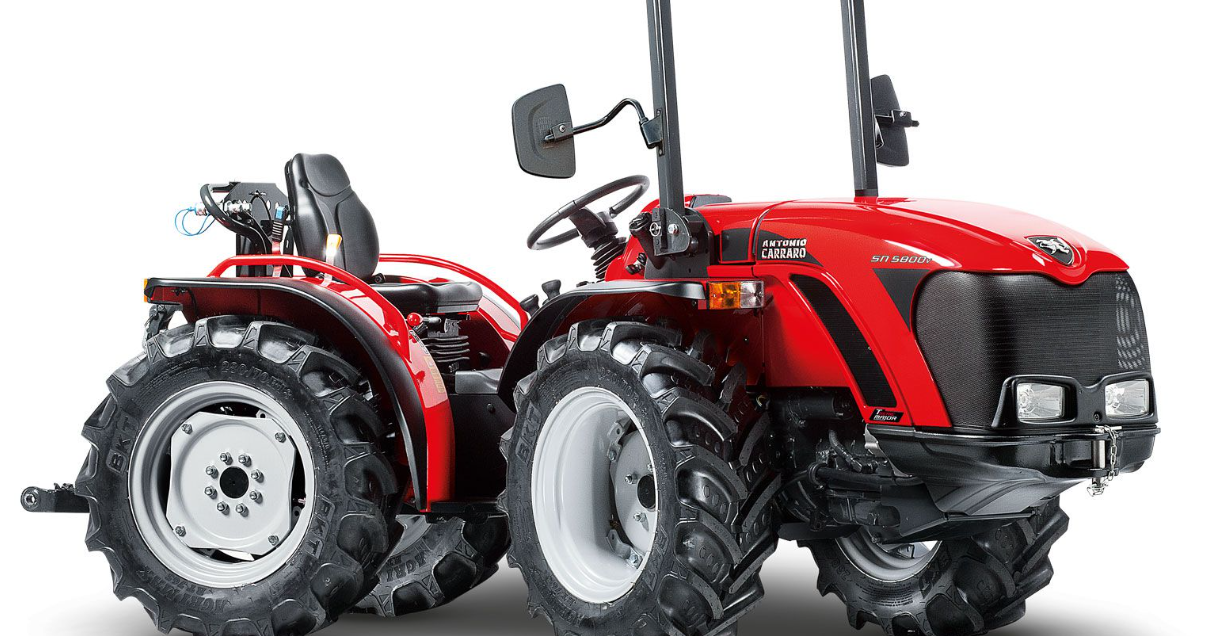

Antonio Carraro SN 5800 V – 4WD Utility Tractor for Narrow Crop Rows
Specifications
|
Specification |
Details |
|
Tractor Model |
SN 5800 V (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Narrow Crop Rows, Orchards, Vineyards, Steep Gradients |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 2189 cm³, Supercharged, Common Rail Direct Injection, Stage 5 |
|
Maximum Horsepower |
51.5 HP (37.9 kW) @ 2600 RPM |
|
Maximum Torque |
168.2 Nm @ 1690 RPM |
|
Transmission Type |
Synchronized, 12 Forward + 12 Reverse, Shuttle |
|
Clutch |
Mechanic Control |
|
Frame |
ACTIO™ Integral Oscillating Frame, Articulated, Isodiametric |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Rear Oil-Immersed Disc Brakes with Hydraulic Control, Transmission Brake Band for Emergency and Parking |
|
Differential Lock |
Mechanically-Controlled Front, Hydraulically-Controlled Rear |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
250/80-18 in |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540 RPM, Mechanical Control, Synchronized Groundspeed, Optional 540/1000 RPM |
|
Hydraulic System |
Optional Single- and Double-Acting Remote Valves, 5 Rear Quick Couplers |
|
Rear 3-Point Hitch |
Category 1, 1700 kg (3748 lb) Capacity, Oscillating Lift Arms, Lateral Stabilizer Bars, Optional Position and Draft Control, Optional Sliding Quick Hitches |
|
Steering |
Hydraulic with 2 Pistons, Optional Tilt-Adjustable Steering Column |
|
Electrical System |
Central Control Panel, Digital Speedometer, Battery Disconnect, 3- and 7-Pole Electrical Outlet Sockets, Lights, Direction Indicators, Horn, Provision for Flashing Light |
|
Weight |
1600 kg (3527 lb, Roll-Bar) |
|
Ground Clearance |
287 mm (11.3 in) |
|
Fuel Tank Capacity |
38.5 l (10.2 gal) |
|
Wheelbase |
1210 mm (47.6 in) |
|
Width |
985-1480 mm (38.8-58.3 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
