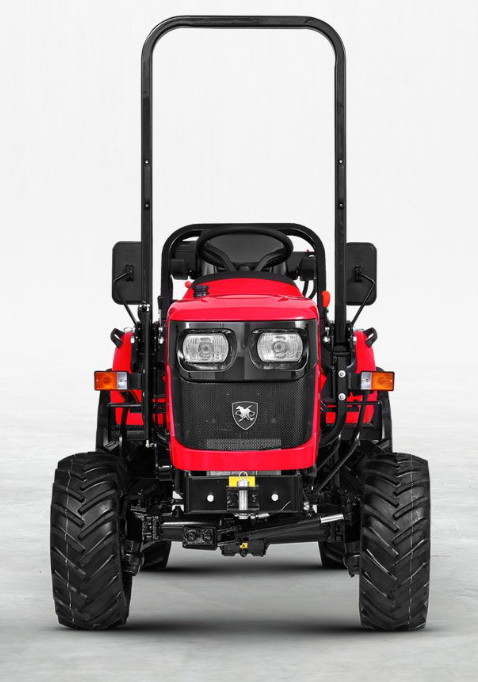

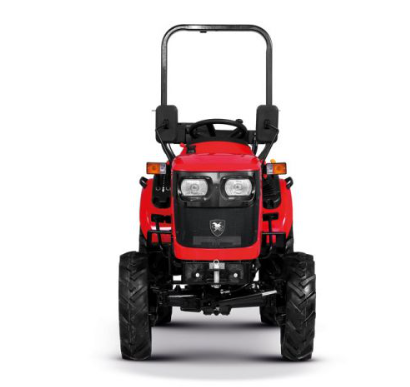

Antonio Carraro Panther 26 H – 4WD Hydrostatic Compact Tractor for Small Farms
Specifications
|
Specification |
Details |
|
Tractor Model |
Panther 26 H (4WD) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Greenhouses, Gardens, Small Farms |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mitsubishi Stage V, 3 Cylinders, 1318 cc, Liquid Cooling |
|
Maximum Horsepower |
25 HP (18.2 kW) @ 2200 RPM |
|
Maximum Torque |
76.3 Nm @ 2000 RPM |
|
Transmission Type |
Hydrostatic, Low/Medium/High, Pedal Control |
|
Clutch |
None |
|
Front Axle |
Four Equal Wheel Drive, Rear Differential Lock |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-Immersed Multi-Disc, Mechanical Control (Rear) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
23X8.5/12 |
|
Tyre Size (Rear, Standard) |
280/70R18 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear and Mid-Mounted, 540/540E RPM, Mechanical Engagement with Lever |
|
Hydraulic System |
Open Centre, 1 Double-Acting Spool Valve, 11+11 l/min Capacity (Dual Pumps for Steering and Hydraulic System), Hydraulic Power Lift with Manual Control (Lift-Lower and Position Control), Draft Control |
|
Rear 3-Point Hitch |
Category 1, 900 kg (1984 lb) Capacity |
|
Steering |
Power Steering |
|
Electrical System |
Battery Cut-Off Switch, 2 Front Work Lights, 2 Rear-View Mirrors |
|
Weight |
1035 kg (2282 lb) |
|
ROPS |
Front or Rear Foldable ROPS |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Width |
1220-1270 mm (48.0-50.0 in) |
