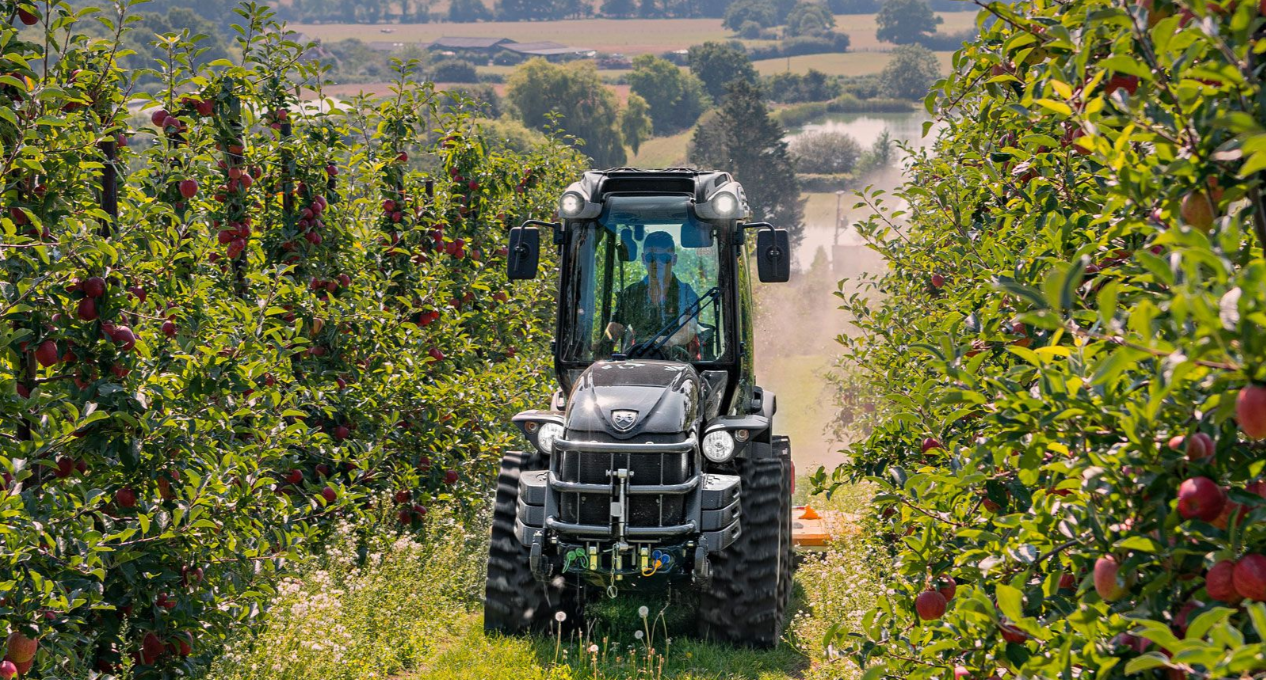

Antonio Carraro MACH 4 TONY T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
MACH 4 TONY T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Nurseries, Extreme Terrains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
KUBOTA Diesel Direct Injection, 4 Cylinders, 16 Valves, 3769 cc, Stage 5, Common Rail, Turbo, Water Cooling |
|
Power |
54.6 kW / 74.2 hp @ 2400 rpm |
|
Torque Max |
305 Nm @ 1500 rpm |
|
Transmission |
Hydrostatic continuous-variable transmission with electrohydraulic reverser, Electrohydraulically activated 4-range selector with “SIM” (Shift In Motion) technology, Continuous speed variation from 0 to 40 km/h in both directions, “Automotive” device, Electronic Speed and RPM Control (RPM recall, Cruise Control, combined, IntelliFix, Diagnosis) |
|
Chassis |
ACTIO™ Full chassis with oscillation, Articulated, Reversibility RGS™, 4WD quadtrack |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Rear or front/rear differential lock with electrohydraulic control |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, Automatic emergency and parking oil bath brakes on transmission |
|
Steering |
Hydraulic with 2 pistons |
Components & Features
|
Specification |
Details |
|
PTO |
Rear, independent and synchronized at 540/540E rpm with progressive electrohydraulic engagement, Shaft Profile 1” 3/8 with 6 splines with facilitated engagement |
|
Hydraulic System |
Hydraulic system with 2 independent pumps, Hydraulic flow at the spool valve of up to 43 l/min, Auxiliary rear hydraulic remotes with 2 double-acting (1 floating) and 1 single-acting distributors, plus 1 oil reflow with 6 rear hydraulic outlets + 2 double-acting with 4 electric-controlled mini-outlets, Operating Pressure 160 bar |
|
Rear Hydraulic Lift |
Hydraulic power lift with damping, Lift arms with cat. 2 quick couplings width adjustable, Lifting capacity 2400 kg |
|
Towing Device |
Height adjustable rear towing device “EEC” type, Front towing device |
|
Platform |
Suspended on Silent Block |
|
Weight |
With Air cab: 3300 kg |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
