Specification

Details

Tractor Model

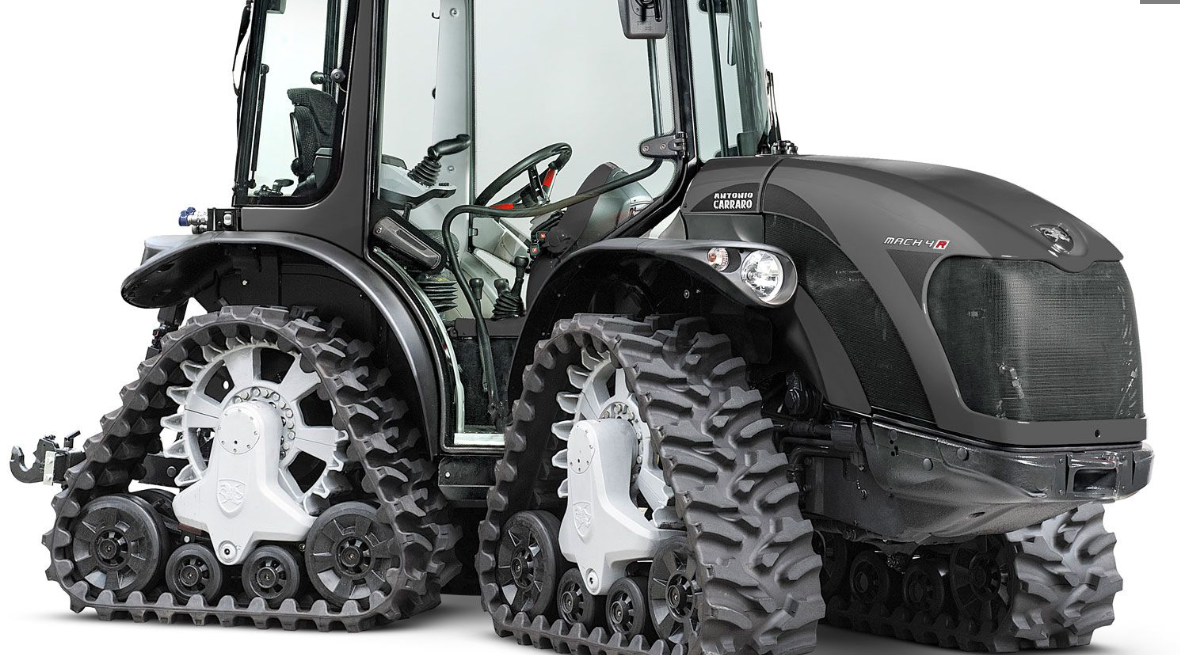

MACH 4 R T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Vineyards, Orchards, Nurseries, Extreme Terrains

Specification

Details

Engine

4 cylinders, 3769 cm³, Diesel Direct Injection Common Rail with Counter Rotating Weight System, Stage 5, Turbo, Water Cooling

Power

54.6 kW / 74.2 hp

Torque Max

305 Nm @ 1500 RPM

Transmission

32-speed synchronised gearbox: 16 forward + 16 reverse gears with synchronised shuttle, Oil-immersed multiplate clutch with progressive electro-hydraulic engagement

Drive Disengagement

Electrohydraulic control on the front

Chassis

ACTIO™ Full Chassis with Oscillation, Articulated, 4WD quadtrack

Specification

Details

Differential Lock

Rear or front/rear differential lock with electrohydraulic control

Brakes

Hydraulic front/rear oil bath disc brakes, Independent hydraulic rear steering brakes, Automatic emergency and parking oil bath brakes on transmission

Steering

Hydraulic with 2 pistons

Specification

Details

PTO

Rear, independent 540/540E rpm, synchronised in all gears, Oil-immersed multiplate clutch with progressive electro-hydraulic engagement, Profile 1” 3/8 with 6 splines with facilitated engagement, Start inhibit switch on shuttle reverser, PTO selector and seat

Hydraulic System

2 double-acting remote valves + oil return, 2 pumps with independent circuits, Operating Pressure 160 bar

Rear Power Lift

With 3 point hitch, Damping function for road transfer, Adjustable lifting arms with Cat. 2 quick release couplings with adjustable width, Lifting capacity 2400 kg

Towing Device

Height adjustable rear towing device “EEC” type, Front towing device

Platform

Suspended on Silent Block

Weight

With roll bar: 3150 kg, With AIR cab: 3300 kg

Tank Capacity

50 litres

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years
