Specification

Details

Tractor Model

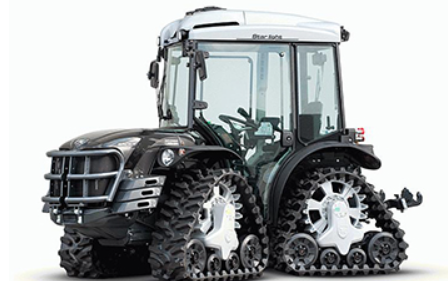

MACH 4 8900 R T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Vineyards, Orchards, Narrow Crop Rows, Steep Slopes

Specification

Details

Engine

4 cylinders, 3769 cm³, Kubota Tier 4 Final, Turbo, Water Cooling, Dry Air Filter with Internal Intake, Diesel Particulate Filter (DPF)

Power

54.6 kW / 74.2 hp

Torque Max

335 Nm @ 1500 RPM

Transmission

Synchronized transmission gearbox with 32 speeds, 16 fwd + 16 rev, and synchronized shuttle reverser, for 15.5 mph ground speed, Hydraulic clutch

Specification

Details

Front Axle

4WD reversible articulated quadtrack, Electro-hydraulic disengagement control for front drive wheels

Differential Lock

Electro-hydraulic front/rear or only rear differential lock

Brakes

Hydraulic front/rear oil bath disc brakes; Emergency and parking brake band type on transmission

Specification

Details

PTO

540/540e independent and ground speed with progressive electro-hydraulic engagement, Start inhibit switch on shuttle reverser, PTO selector and seat

Hydraulic System

Auxiliary rear hydraulic remotes with 3 distributors (2 double acting and 1 single acting), 1 oil reflow; Hydraulic power lift with 3-point + damping

Lifting capacity

5070 lb

Lift arms

Lift arms with quick Couplings, Coupling balls group 2

Towing Device

Front towing device; Swinging drawbar

Frame

Platform chassis on Silent-block

Driving Comfort

Multifunctional digital dashboard with display and diagnostic function; Roll-bar version suitable for beacon light attachment; Rear working light; Forward foldable front safety roll bar (ROPS); Reversible driving position; Adjustable padded seat; Safety belts with automatic retractors; Adjustable steering wheel

Weight with roll bar

6945 lbs

Weight with cabin

7275 lbs

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years
