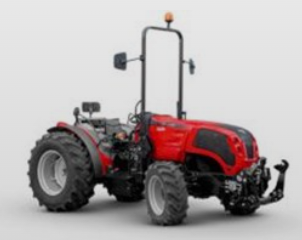

Antonio Carraro AV 2.105 LB – 4WD Utility Tractor for Versatile Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
AV 2.105 LB (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, General Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT F28 Tier 4 Final, 4 Cylinders, 2 Valves, 2800 cm³, Common Rail Injection, Turbocharged with Aftercooler |
|
Maximum Horsepower |
102.3 HP (75.6 kW) @ 2200 RPM |
|
Maximum Torque |
416 Nm @ 1500 RPM |
|
Transmission Type |
Synchronized, 24 Forward + 12 Reverse, 4 Gears, 3 H/M/L Ranges with Electro-Hydraulic Hi-Lo and Power Reverser, Wet Clutch |
|
Clutch |
Wet |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four Wheel Drive, Electro-Hydraulic Rear Differential Lock, MFWD with Hydraulic Option |
|
Braking System |
Mechanical and Hydraulic Front/Rear Oil-Bath Disc Brakes |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent, 540/540e RPM with Electro-Hydraulic Engagement |
|
Hydraulic System |
Load-Sensing Circuit, 2 or 3 Double-Acting Distributors, 1 Oil Reflow, 2 Lubrication Oil Pumps, 15 gal/min Flow Rate @ 1500 RPM, Hydraulic Power Lift with Adjustable Lift Arms (Category 1 and 2) |
|
Rear 3-Point Hitch |
Category 1 and 2, 5060 lb Capacity |
|
Steering |
Hydraulic with Through-Rod Cylinder, Adjustable Steering Wheel |
|
Electrical System |
Battery Isolation Switch, Digital Multifunctional Dashboard with Display and Diagnostic Function, 2 Front + 2 Rear LED Working Lights |
|
Weight |
5908 lb (Roll Bar) |
|
Cab Options |
Starlight (Air-Conditioned, Tapered Profile) or Protector (Super-Low-Profile, Category 1 or Category 4 Pressurized) |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Width |
1346 mm (53 in) |
