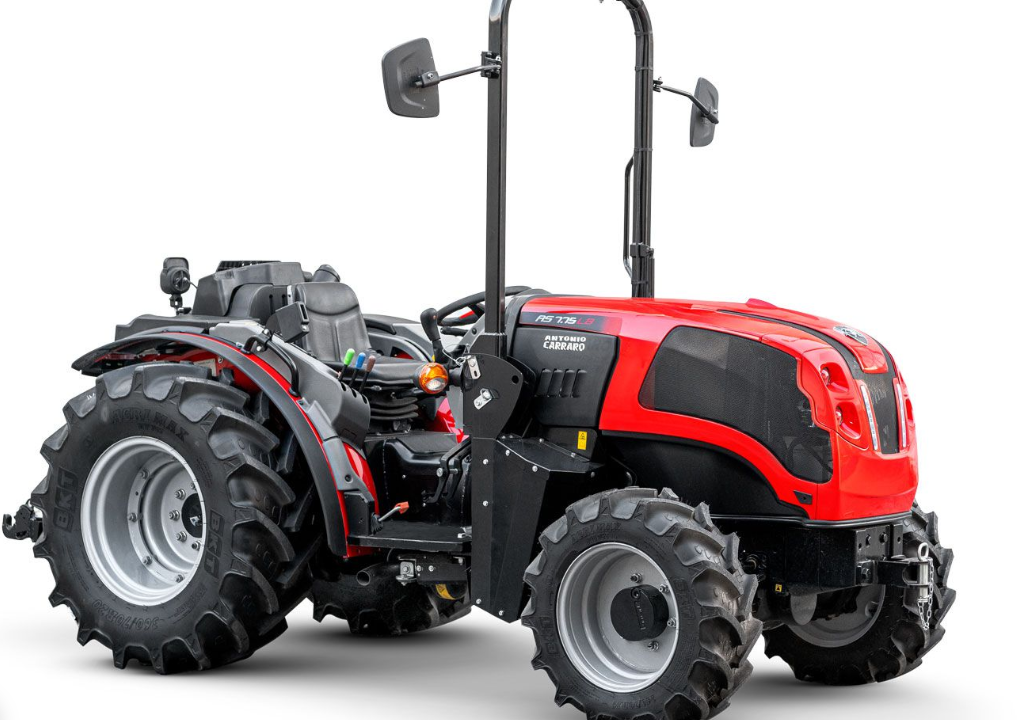

Antonio Carraro AS-LB 75 VLB – 4WD Utility Tractor for Pergola Cultivation
Specifications
|
Specification |
Details |
|
Tractor Model |
AS-LB 75 VLB (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |

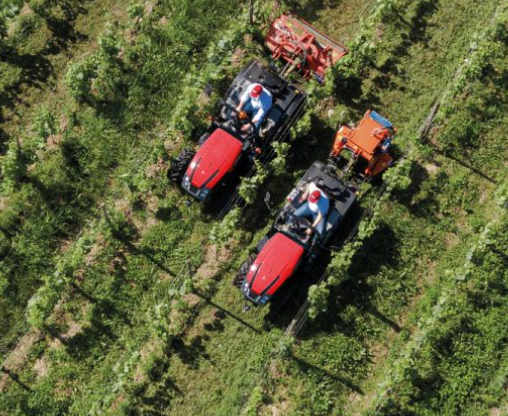

Pergola/Canopied Cultivation, Under Foliage Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz TCD 2.2 Stage V, 3 Cylinders, 2200 cm³, Common Rail Injection, DOC/DPF, Horizontal Exhaust |
|
Maximum Horsepower |
75 HP (55 kW) @ 2600 RPM |
|
Transmission Type |
24 Forward + 24 Reverse (Mechanical Synchronized, Synchronized Hi-Lo, 30 km/h) or 24 Forward + 12 Reverse (Power Reverser, Power Hi-Lo, 40 km/h), 4 Gears, 3 H/M/L Ranges |
|
Clutch |
Independent, Dry 11” for 24+24, Oil-Bath for 24+12 |
|
Front Axle |
Four Wheel Drive, 55° Steering Angle, 6° Swing Angle, Flange-to-Flange 1155 mm, Electro-Hydraulic Engagement, Differential Gear with Limited Slip |
|
Rear Axle |
Planetary Reducer (6:1), Flange-to-Flange 892 mm, Electro-Hydraulic Rear Differential Lock |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Mechanical and Hydraulic, 8 Oil-Bath Disc Brakes (Front/Rear) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
240/70R16 |
|
Tyre Size (Rear, Standard) |
360/70R20 |
|
Tyre Size (Optional) |
Front: 280/70R16, Rear: 360/70R24 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent, 540/540E or 540/1000 RPM, Mechanical (24+24) or Electro-Hydraulic (24+12) Engagement |
|
Hydraulic System |
50+30 l/min (2 Pumps), 3 Rear Distributors (1 SE/DE + 2 DE with Detent), Free Oil Return, Electronically Controlled Lift, Category 1/1N Parallel Blocks (Fixed, Adjustable, or Quick Coupling), Adjustable Mud Aprons |
|
Rear 3-Point Hitch |
Category 1/1N, 1800 kg (3968 lb) Capacity |
|
Steering |
Hydraulic, Steering Wheel Height 1300 mm |
|
Electrical System |
Electronic Engine Speed Control (2 Speeds), Electronic Accelerator on Right-Hand Console |
|
Weight |
2200 kg (4850 lb, Without Driver and Front Weights), Optional 80 kg + 6x25 kg Front Weights |
|
Cab Options |
None, Fold-Down Front Protection Arch with Gas Springs, Suspended Platform on 4 Silent Blocks |
|
Ground Clearance |
Front: 245 mm, Rear: 180 mm |
|
Fuel Tank Capacity |
44 l (11.6 gal) |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Wheelbase |
1900 mm (74.8 in) |
|
Width |
1360-1460 mm (53.5-57.5 in) |
