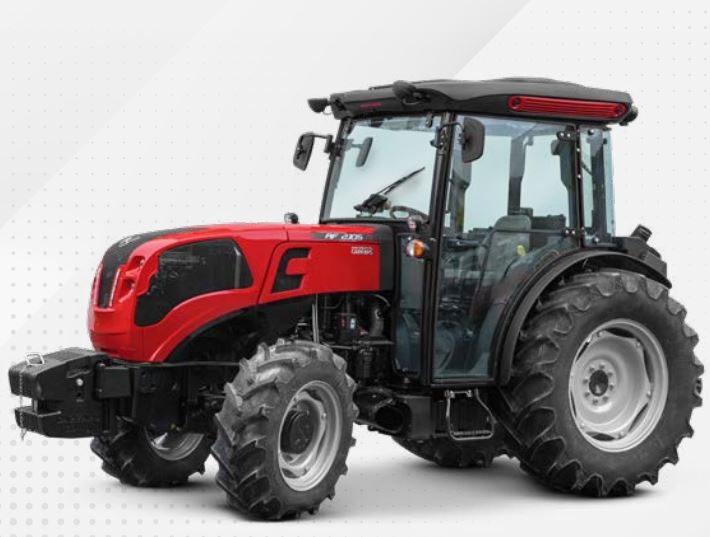

Antonio Carraro AF 2.85 L – 4WD Utility Tractor for Sloping Terrains
Specifications
|
Specification |
Details |
|
Tractor Model |
AF 2.85 L (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Open Fields, Walnut Groves, Low-Hanging Branches, Sloping Terrain |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT F28 Stage V, 4 Cylinders, 2 Valves, 2800 cm³, Common Rail Injection, Turbocharged with Aftercooler, DOC/DPF |
|
Maximum Horsepower |
74.8 HP (55 kW) @ 2300 RPM |
|
Maximum Torque |
358 Nm @ 1500 RPM |
|
Transmission Type |
Synchronized, 24 Forward + 12 Reverse (or 24+24 Optional), 4 Gears, 3 H/M/L Ranges with Electro-Hydraulic Hi-Lo and Power Reverser, Dry 12” Cerametallic Clutch |
|
Clutch |
Dry, 12” Cerametallic |
|
Front Axle |
Four Wheel Drive, Carraro, 55° Steering Angle, Flange-to-Flange 1460 mm (1640 mm Optional), Mechanical or Hydraulic Engagement, Electro-Hydraulic Rear Differential Lock |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Mechanical and Hydraulic, 10 Oil-Bath Disc Brakes (Front/Rear) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
300/70R20 |
|
Tyre Size (Rear, Standard) |
420/70R28 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent, 540/540E or 540/1000 RPM, Electro-Hydraulic Engagement |
|
Hydraulic System |
Load-Sensing, 2 or 3 Mechanical Distributors (1 SE/DE Detent + 1 SE/DE Floating, Optional 3rd SE/DE or 4th Electro-Hydraulic in Cab), 1 Free Oil Flow, 60+27 l/min (2 Pumps) or 60+27+27 l/min (3 Pumps) @ 2300 RPM, Hydraulic Power Lift with Adjustable Parallel Blocks (Category 1 or 2), Vertical Mechanical Tie Rod |
|
Rear 3-Point Hitch |
Category 1 or 2, 2600 kg (5732 lb) Capacity |
|
Steering |
Hydraulic, Fixed or Adjustable Steering Column (OOS), Adjustable and Telescopic (Cab) |
|
Electrical System |
80 Ah Battery, 100 A Alternator, 3.2 kW Starter Motor, 2 Front + 2 Rear Halogen Oval Lights, H3/H4 Lights (Cab, Optional), Rotating Security Light (Optional) |
|
Weight |
2875 kg (6340 lb, Roll Bar); 3140 kg (6922 lb, Cab) |
|
Cab Options |
Air-Conditioned Cab, 4 Uprights, Category 2, on Silent Block; or Tiltable Front ROPS |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Width |
1684-2197 mm (66.3-86.5 in) |
