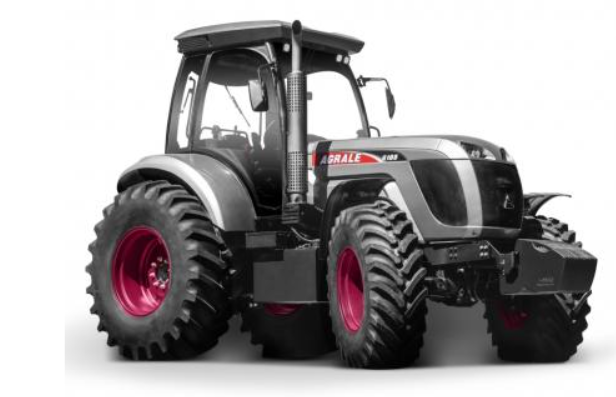

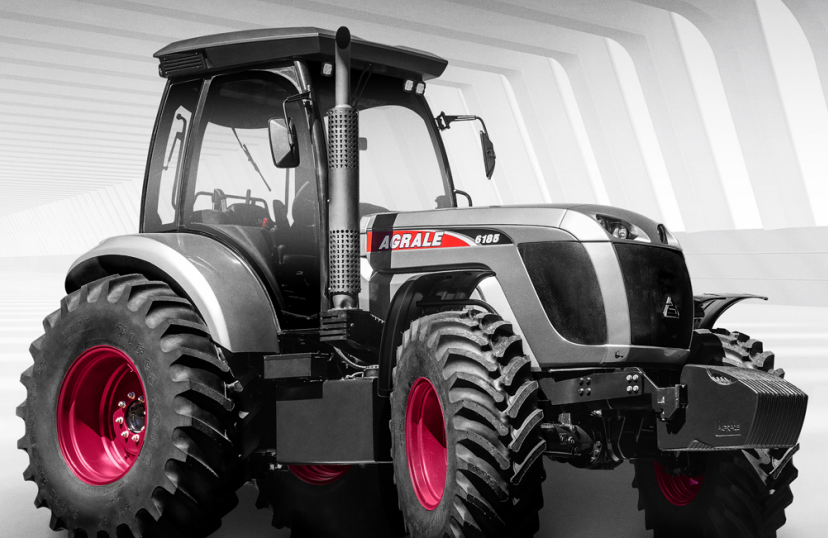

Agrale 6185 – 4x4 Mid-Range Tractor for Precision Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
6185 (4x4) |
|
Vehicle Category |
Mid-Range Tractor |
|
Fuel Type |
Diesel |
|
Application |
Precision Agriculture, Large-Scale Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
MWM 229-6 TCE, 6 Cylinders Vertical In-Line, 6200 cm³, Turbocharged |
|
Maximum Horsepower |
175 HP (NBR ISO 14396) |
|
Maximum Torque |
72 kgf.m (710 Nm) @ 1300-1500 RPM |
|
Transmission Type |
Partially Synchronized, 24 Forward + 12 Reverse, Mechanical Lock |
|
Clutch |
Single-Disc, Mechanical/Hydraulic Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Central Self-Locking Differential (4x4) |
|
Braking System |
Service Brake: Oil-Bath Disc; Parking Brake: Manual, Independent of Service Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
18.4 x 26 R1 |
|
Tyre Size (Rear, Standard) |
24.5 x 32 R1 |
|
Tyre Size (Optional) |
Rice Paddies: 14.9 x 28 R2 / 23.1 x 30 R2; Cultivators: 18.4-26 / 20.8-38; Dual: 18.4-26 R1 - 20.8-38 R1; Agricultural: 16.9-30 R1 / 24.5-32 R1, 14.9-28 R1 / 23.1-30 R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
280 L |
|
PTO Type |
Independent with Multi-Disc Oil-Bath Clutch, 540 RPM @ 2083 RPM Engine, 1000 RPM @ 2136 RPM Engine |
|
Hydraulic System |
126 L/min @ 2200 RPM, 180 kgf/cm², Standard 2 Remote Controls (4 Ways), Optional Continuous Flow Remote Control |
|
Rear 3-Point Hitch |
Category III, 6700 kg Capacity |
|
Steering |
Hydraulic, Hydrostatic |
|
Electrical System |
12V Battery, 135 A.h; 14V Alternator, 120 A |
|
Base Weight |
Shipping: 7020 kg; Operating: 9500 kg |
|
Precision Agriculture |
Speed Memory |
|
Width |
2670 mm |
