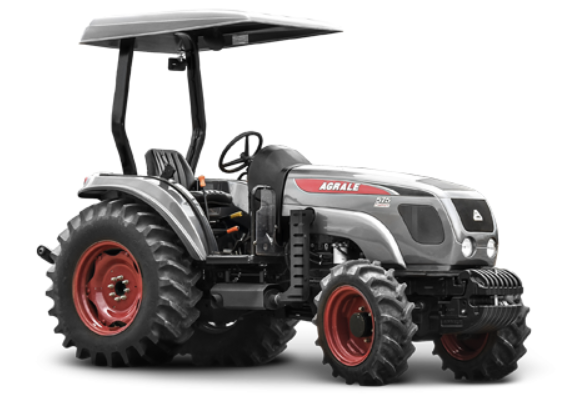

Agrale 575 Compact – 4x4 Compact Tractor for Dense Crops and Small Properties
Specifications
|
Specification |
Details |
|
Tractor Model |
575 Compact (4x4) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Dense Crops, Small-Scale Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Perkins 1104D, 4 Cylinders Vertical In-Line, 4400 cm³, Natural Aspiration |
|
Maximum Horsepower |
73.4 HP (54 kW, ISO 14396), 76.1 HP (55.9 kW, SAE J1995) @ 2200 RPM |
|
Maximum Torque |
26.6 kgf.m (261 Nm) @ 1700 RPM |
|
Transmission Type |
Mechanical Synchronized, 15 Forward + 15 Reverse with Reverser and Creeper, Mechanical Lock via Pedal with Automatic Reverse |
|
Clutch |
Dry Dual-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Central Differential (4x4) |
|
Braking System |
Service Brake: Oil-Bath Disc; Parking Brake: Manual Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
250/80 x 18 R1 |
|
Tyre Size (Rear, Standard) |
14.9 x 24 R1 |
|
Tyre Size (Optional) |
8.00 x 18 R1 - 14.9 x 28 R1; 8.00 x 18 R1 - 14.9 x 24 R2; 7.00 x 18 R1 - 14.9 x 24 R1; 7.00 x 18 R1 - 12.4 x 28 R1; 7.50L x 15 R1 - 12.4 x 24 R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
70 L |
|
PTO Type |
Independent, 540 RPM @ 2000 RPM Engine |
|
Hydraulic System |
50 L/min @ 2400 RPM, 180 kgf/cm², Standard Remote Control (1 Command / 2 Ways, Quick Hitch, Two Pressure Lines) |
|
Rear 3-Point Hitch |
Category II, 2000 kg Capacity |
|
Steering |
Hydraulic, Hydrostatic |
|
Electrical System |
12V Battery, 70 A.h; 12V Alternator, 85 A |
|
Base Weight |
Shipping: 2310 kg (Without Cabin), 2590 kg (With Cabin); Operating: 3060 kg (Without Cabin), 3315 kg (With Cabin) |
|
Optional Features |
Rear Counterweights |
|
Width |
1430 mm |
