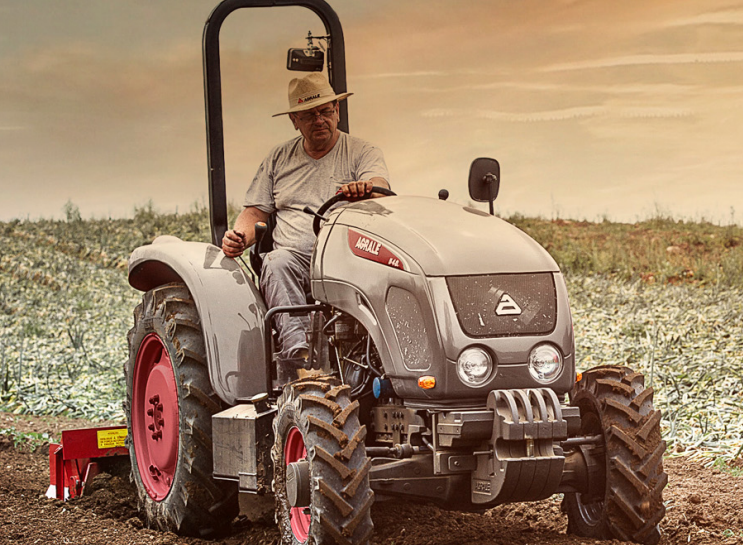

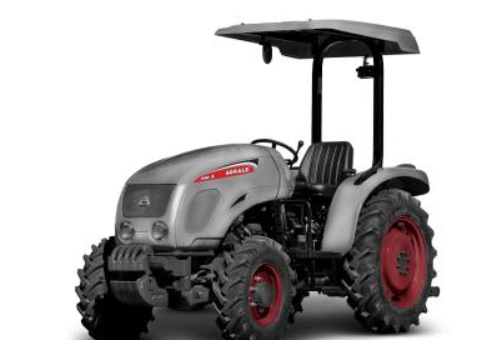

Agrale 540 XT – 4x4 Compact Tractor for Dense Crops and Small Properties
Specifications
|
Specification |
Details |
|
Tractor Model |
540 XT (4x4) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Dense Crops, Small-Scale Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale, 4 Cylinders, 2417 cm³, Natural Aspiration, Electronic |
|
Maximum Horsepower |
40 HP (29.4 kW, ISO 14396), 41.4 HP (30.4 kW, SAE J1995) @ 2400 RPM |
|
Maximum Torque |
15.2 kgf.m (149 Nm) @ 1600 RPM |
|
Transmission Type |
Synchronized Reverser, 8 Forward + 8 Reverse |
|
Clutch |
Dry Dual-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Central Differential (4x4) |
|
Braking System |
Service Brake: Oil-Bath Disc |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
250/80x18 R1 |
|
Tyre Size (Rear, Standard) |
12.4x24 R1 |
|
Tyre Size (Optional) |
7.00 x 18 R1 - 12.4 x 24 R1; 7.50 x 15 R1 - 9.50 x 24 R1; 7.50 x 15 R1 - 11.2/10 x 24 R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
44 L |
|
PTO Type |
Independent, 540 RPM @ 2077 RPM Engine |
|
Hydraulic System |
36 L/min @ 2400 RPM, 180 kgf/cm², Optional Remote Control |
|
Rear 3-Point Hitch |
1100 kg Capacity |
|
Steering |
Hydraulic, Hydrostatic, Optional Low Steering |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 55 A |
|
Base Weight |
Shipping: 1920 kg (Without Cabin), 2230 kg (With Cabin); Operating: 2270 kg (Without Cabin), 2600 kg (With Cabin) |
|
Optional Features |
Six or Eight Front Counterweights (Without Cabin), Rear Counterweights (Without Cabin), Low Seat (Without Cabin), Dual Control (Standard with Cabin, Optional Without) |
