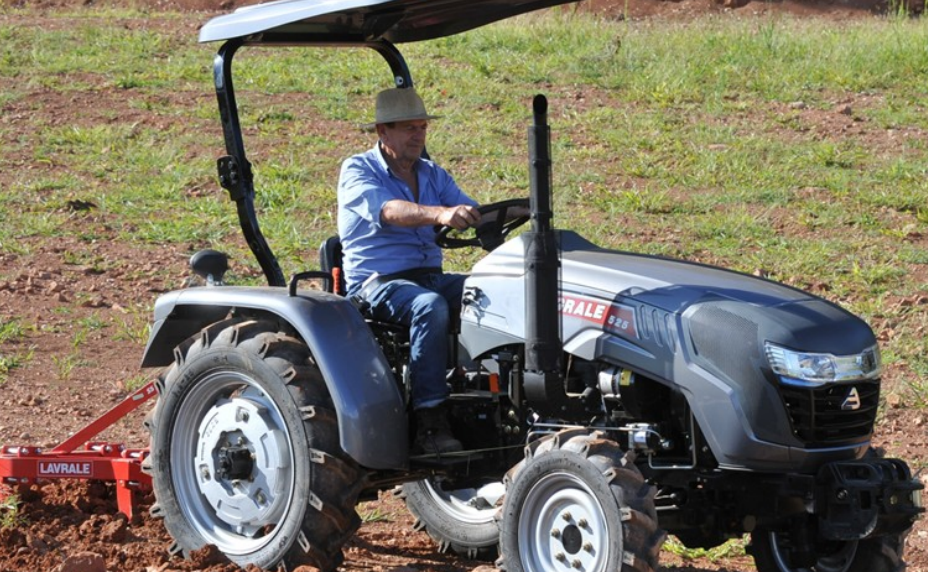

Agrale 525 – 4x4 Compact Tractor for Small-Scale Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
525 (4x4) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Small-Scale Agriculture, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale KM385, 3 Cylinders, Natural Aspiration |
|
Maximum Horsepower |
25 HP (18.4 kW) @ 2350 RPM (ISO 14396) |
|
Maximum Torque |
8.5 to 10.2 kgf.m (83.3 to 100 Nm) @ 1650 ±100 RPM (NBR ISO 14396) |
|
Transmission Type |
Mechanical, 8 Forward + 8 Reverse, Mechanical Lock |
|
Clutch |
Dual-Action (Ceramic Disc), Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Central Differential (4x4) |
|
Braking System |
Service Brake: Dry, Mechanical Actuation |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
6.00-16" R1 |
|
Tyre Size (Rear, Standard) |
9.5-24" R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
30 L |
|
PTO Type |
Dependent, 540 RPM / 1000 RPM |
|
Hydraulic System |
16 L/min @ 2350 RPM, Position and Float Control, Standard Remote Control |
|
Rear 3-Point Hitch |
620 kg Capacity |
|
Steering |
Hydraulic, Hydrostatic |
|
Electrical System |
12V Battery, 90 A.h (Sealed); 14V Alternator, 53 A |
|
Length |
3400 mm |
|
Width |
1475 mm |
|
Height |
2300 mm (to Roof) |
|
Base Weight |
1400 kg (Shipping), 1600 kg (Operating) |
|
Rear Track Width |
1220 mm |
|
Front Track Width |
1265 mm |
