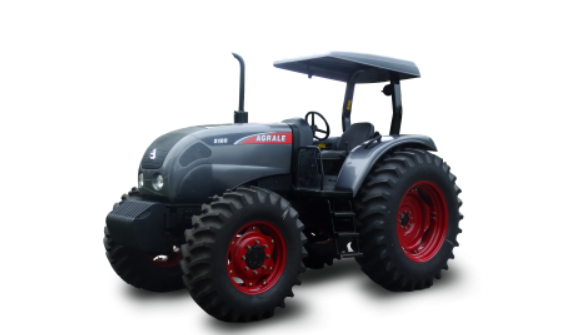

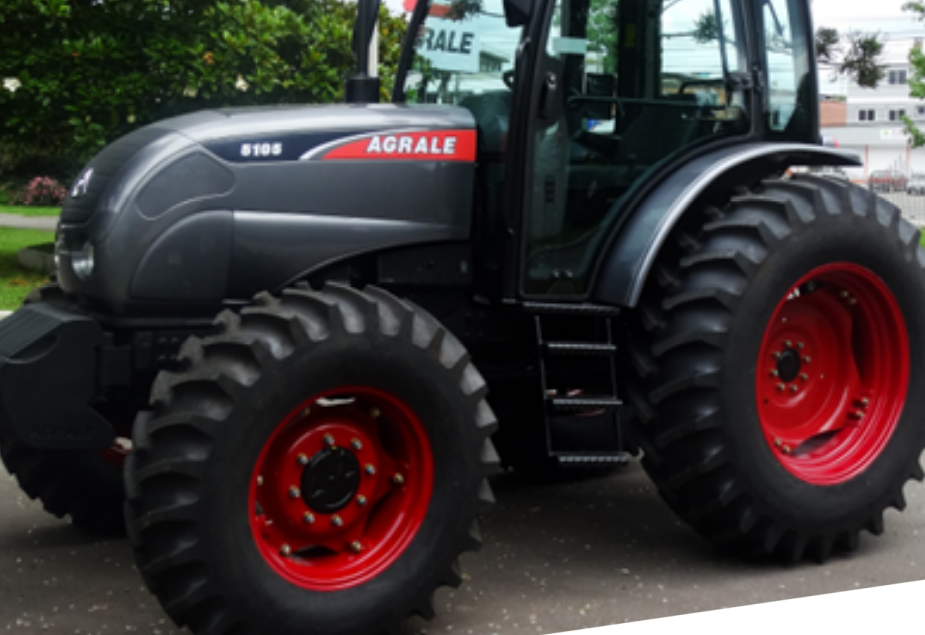

Agrale 5105 – 4x4 Mid-Range Tractor for Cultivation and Forage
Specifications
|
Specification |
Details |
|
Tractor Model |
5105 (4x4) |
|
Vehicle Category |
Mid-Range Tractor |
|
Fuel Type |
Diesel |
|
Application |
Cultivation, Forage, General Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Perkins 1104D-44TA, 4 Cylinders Vertical In-Line, 4400 cm³, Turbocharged Aftercooler |
|
Maximum Horsepower |
101.9 HP (74.9 kW, ISO 14396), 105.6 HP (77.6 kW, SAE J1995) @ 2200 RPM |
|
Maximum Torque |
42 kgf.m (412 Nm) @ 1400 RPM |
|
Transmission Type |
Fully Synchronized, 24 Forward + 24 Reverse, Electro-Hydraulic Lock |
|
Clutch |
Dry Dual-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Central Differential (4x4, Electro-Hydraulic Engagement) |
|
Braking System |
Service Brake: Oil-Bath Disc; Parking Brake: Manual via Cable |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
14.9 x 24 R1 |
|
Tyre Size (Rear, Standard) |
18.4 x 34 R1 |
|
Tyre Size (Optional) |
14.9 x 24 R1 - 23.1 x 26 R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
90 L |
|
PTO Type |
Independent or Proportional to Tractor Speed, 540 RPM @ 2000 RPM Engine, 540 ECO @ 1500 RPM Engine |
|
Hydraulic System |
Total Flow: 99.5 L/min @ 2200 RPM, Remote Control Flow: 62 L/min @ 2200 RPM, 180 kgf/cm², Standard Dual Remote Control, Optional Triple Control |
|
Rear 3-Point Hitch |
Category II, 4200 kg Capacity |
|
Steering |
Hydraulic, Hydrostatic, Telescopic and Retractable |
|
Electrical System |
12V Battery, 100 A.h (Sealed); 12V Alternator, 85 A |
|
Base Weight |
Shipping: 4540 kg (With Cabin); Operating: 5220 kg (With Cabin, Metal Ballast + Water) |
|
Optional Features |
Triple Remote Control, Electrical Outlet Kit, 2 or 4 Rear Counterweights |
