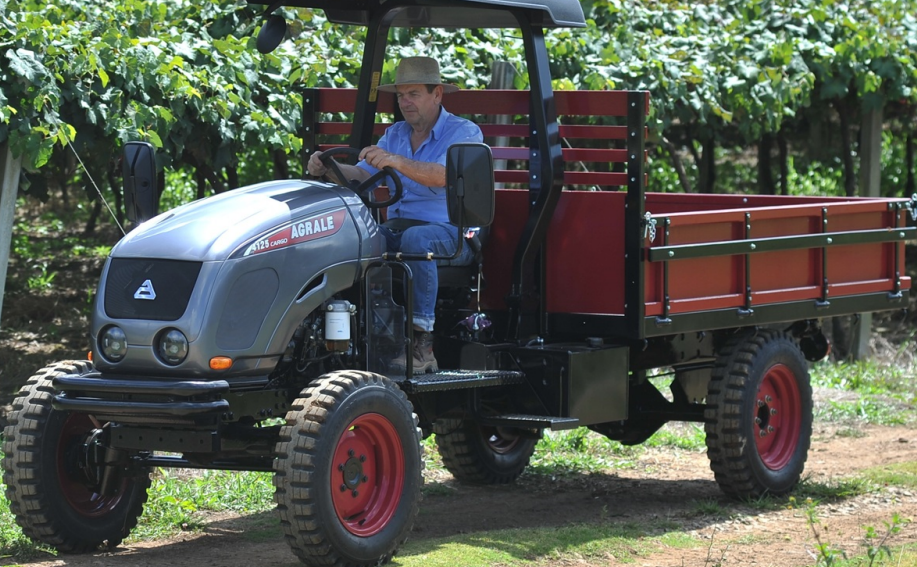

Agrale 4233 – 4x4 Isodiametric Tractor for Dense Crops and Steep Terrains
Specifications
|
Specification |
Details |
|
Tractor Model |
4233 (4x4) |
|
Vehicle Category |
Isodiametric Tractor |
|
Fuel Type |
Diesel |
|
Application |
Dense Crops, Steep Terrains, Small-Scale Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale M790, 2 Cylinders, 1270 cm³, Natural Aspiration |
|
Maximum Horsepower |
24.5 HP (NBR ISO 1585) |
|
Maximum Torque |
6.9 daNm (7.0 kgf.m, 68.6 Nm) @ 2550 RPM (NBR ISO 1585) |
|
Transmission Type |
Mechanical with Sliding Gears, 8 Forward + 4 Reverse, Mechanical Lock via Pedal |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Conjugated with Transmission |
|
Braking System |
Service Brake: Rear Dry Drum; Parking Brake: Manual Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
7.50L x 15 R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
35 L |
|
PTO Type |
Dependent, 540 RPM @ 2600 RPM Engine or Proportional |
|
Hydraulic System |
24 L/min @ 3000 RPM, 120 kgf/cm², Standard Simple Remote Control |
|
Rear 3-Point Hitch |
Category I, 1050 kg Capacity |
|
Steering |
Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 55 A |
|
Base Weight |
1080 kg (Shipping), 1300 kg (Operating) |
|
Optional Features |
Kit Emplacamento e Luz de Ré |
|
Width |
1120 mm / 1280 mm |
