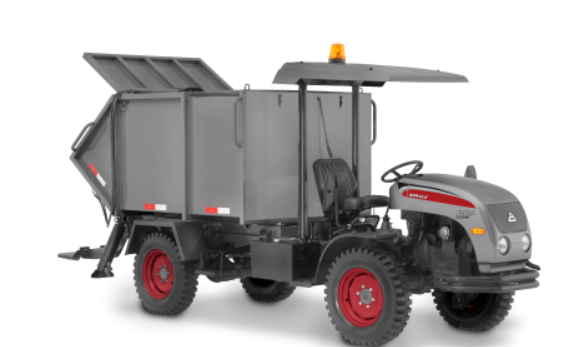

Agrale 4230 Coletor – 4x4 Waste Collection Tractor for Narrow and Steep Areas
Specifications
|
Specification |
Details |
|
Tractor Model |
4230 Coletor (4x4) |
|
Vehicle Category |
Waste Collection Tractor |
|
Fuel Type |
Diesel |
|
Application |
Waste Collection, Narrow Streets, Steep Terrains, Condominiums, Small Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale M790, 2 Cylinders Vertical In-Line, Natural Aspiration |
|
Maximum Horsepower |
24.5 HP (18.0 kW) @ 2700 RPM |
|
Maximum Torque |
7.0 kgf.m (68.6 Nm) @ 2550 RPM (NBR ISO 1585) |
|
Transmission Type |
Mechanical Synchronized, 6 Forward + 2 Reverse |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Directional Traction with Central Differential (4x4) |
|
Rear Axle |
DANA 60 Vehicular |
|
Braking System |
Service Brake: Hydraulic Disc; Parking Brake: Manual via Cable to Disc |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
7.00-16" Military 4x4 (Mixed Use) |
|
Tyre Size (Rear, Standard) |
7.00-16" Military 4x4 (Mixed Use) |
|
Wheel Size (Front/Rear, Standard) |
5.50K-16" |
|
Tyre Size (Optional) |
7.50L-15" R1 Agricultural |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
39 L |
|
PTO Type |
540 RPM @ 2485 RPM Engine |
|
Hydraulic System |
32 L/min @ 3000 RPM, 120 kgf/cm² |
|
Steering |
Hydraulic, Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 55 A |
|
Base Weight |
Shipping: 2250 kg; Operating: 2370 kg (PBT 3150 kg) |
|
Cargo Capacity |
780 kg |
|
Optional Features |
Sunroof with Protection Arch, Rotating Visual Signal, Fire Extinguisher Kit |
