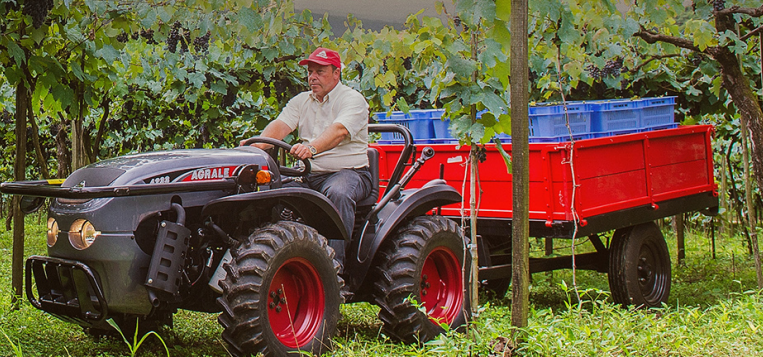

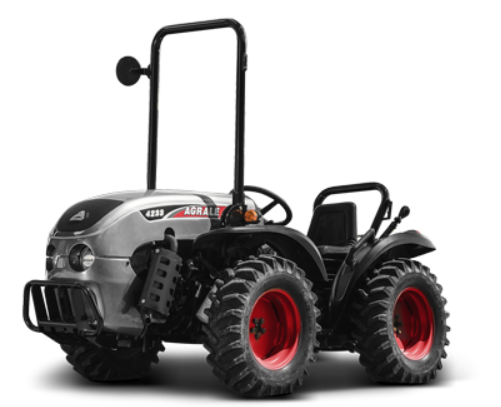

Agrale 4125 Cargo – 4x4 Transport Tractor for Cargo and Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
4125 Cargo (4x4) |
|
Vehicle Category |
Transport Tractor |
|
Fuel Type |
Diesel |
|
Application |
Cargo Transport, Small-Scale Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale YD390T, 3 Cylinders, 1532 cm³ |
|
Maximum Horsepower |
25 HP (NBR ISO 1585) |
|
Maximum Torque |
9.43 kgf.m (92.5 Nm) @ 1600 RPM (NBR ISO 1585) |
|
Transmission Type |
Mechanical, 6 Forward + 2 Reverse, Mechanical Lock via Auxiliary Lever |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Directional Traction with Central Differential |
|
Braking System |
Service Brake: Hydraulic Disc |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
7.00 x 16" |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
39 L |
|
PTO Type |
Independent, 522 RPM @ 2400 RPM Engine |
|
Hydraulic System |
36 L/min @ 2400 RPM, 120 kgf/cm² |
|
Steering |
Hydraulic / Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 35 A |
|
Length |
4400 mm / 5025 mm / 5360 mm |
|
Width |
1520 mm / 1700 mm / 2010 mm |
|
Height |
1760 mm / 1790 mm |
|
Base Weight |
Shipping: 1540 kg / 1875 mm / 1890 mm / 2560 mm; Operating: 1655 kg / 1990 mm / 2005 mm / 2675 mm |
|
Cargo Capacity |
1500 kg |
|
Rear Track Width |
1330 mm |
|
Front Track Width |
1235 mm |
