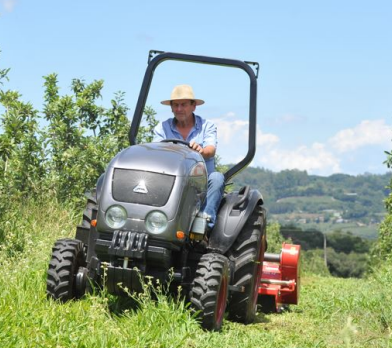

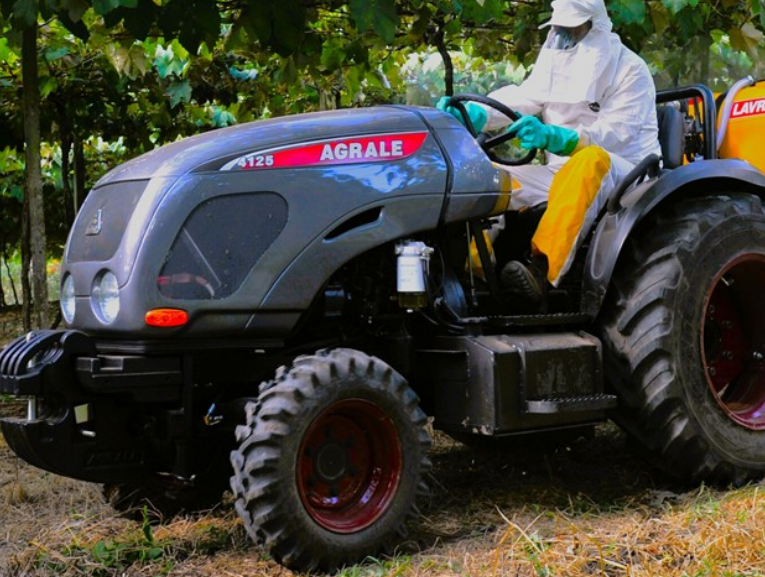

Agrale 4125 – Compact 4x4 Tractor for Small-Scale Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
4125 (4x4) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Small-Scale Agriculture, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale YD390T, 3 Cylinders, 1532 cm³ |
|
Maximum Horsepower |
25 HP (NBR ISO 1585) |
|
Maximum Torque |
9.43 kgf.m (92.5 Nm) @ 1600 RPM (NBR ISO 1585) |
|
Transmission Type |
Mechanical, 7 Forward + 3 Reverse, Mechanical Lock via Auxiliary Lever |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Directional Traction with Central Differential |
|
Braking System |
Service Brake: Expandable Shoe, Independent or Combined Actuation; Parking Brake: Manual Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
6.5/80-12" |
|
Tyre Size (Rear, Standard) |
8.3x24 R1 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
26 L |
|
PTO Type |
Dependent, 540/750/1000 RPM |
|
Hydraulic System |
36 L/min @ 2400 RPM, 120 kgf/cm², Optional Remote Control (1 Command / 2 Ways) |
|
Rear 3-Point Hitch |
Category I, 650 kg Capacity |
|
Steering |
Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 35 A |
|
Length |
2810 mm |
|
Width |
1280 mm |
|
Height |
2025 mm |
|
Base Weight |
1440 kg (Shipping), 1730 kg (Operating) |
|
Rear Track Width |
1000 mm |
|
Front Track Width |
955 mm |
