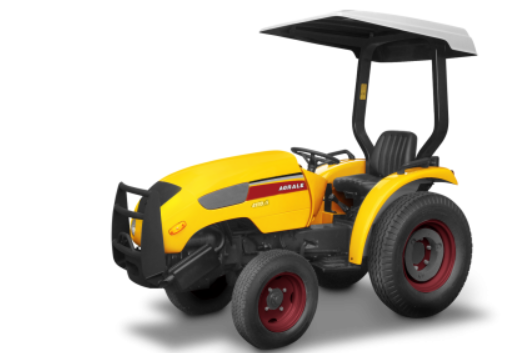

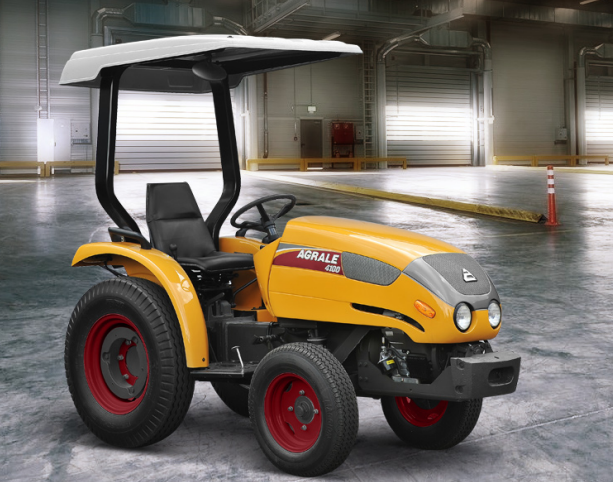

Agrale 4100 Industrial – 4x2 Tow Tractor for Logistical and Industrial Operations
Specifications
|
Specification |
Details |
|
Tractor Model |
4100 Industrial (4x2) |
|
Vehicle Category |
Tow Tractor |
|
Fuel Type |
Diesel |
|
Application |
Logistical and Industrial Operations, Airports, Condominiums, Hospitals |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale, 1 Cylinder Vertical, Natural Aspiration |
|
Maximum Horsepower |
14.7 HP (10.8 kW) @ 2750 RPM, PTO: 13.2 HP (9.7 kW) @ 2750 RPM |
|
Maximum Torque |
4.0 kgf.m (39 Nm) @ 2350 RPM (NBR ISO 1585) |
|
Transmission Type |
Mechanical, 7 Forward + 3 Reverse |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Oscillating (4x2) |
|
Braking System |
Service Brake: Expandable Shoe; Parking Brake: Manual Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
5.60 x 15" F3 |
|
Tyre Size (Rear, Standard) |
7.50 x 18" |
|
Tyre Size (Optional) |
Dual Rear Tyres |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
19.6 L |
|
PTO Type |
1300 RPM @ 2750 RPM Engine, 1000 RPM @ 2750 RPM Engine (4th and Reduced Gears), 1420 RPM @ 2750 RPM Engine (Reverse Gears) |
|
Steering |
Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 55 A |
|
Length |
2410 mm |
|
Width |
1220 mm |
|
Height |
1210 mm |
|
Base Weight |
Shipping: 910 kg; Operating: 1000 kg |
|
Optional Features |
Rear Counterweights, Front Protector, Industrial Tow Bar Kit, Sunroof Kit, Rotating Visual Signal, Remote Control System, Dual Rear Tyres |
|
Rear Track Width |
863 mm / 976 mm |
|
Front Track Width |
797 mm / 925 mm |
