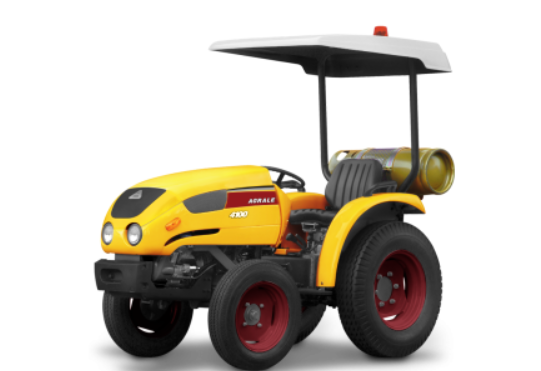

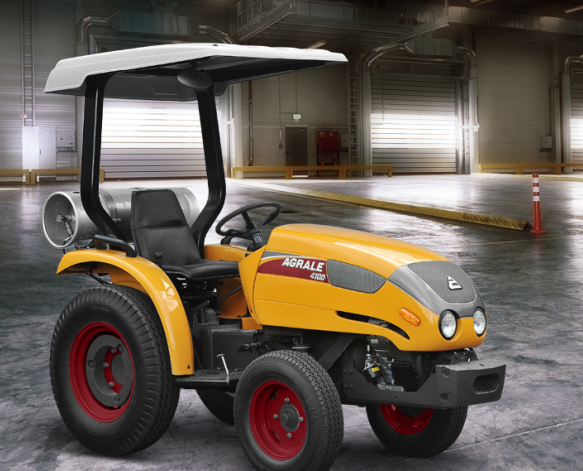

Agrale 4100 GLP – 4x2 Tow Tractor for Logistical Operations
Specifications
|
Specification |
Details |
|
Tractor Model |
4100 GLP (4x2) |
|
Vehicle Category |
Tow Tractor |
|
Fuel Type |
LPG (Liquefied Petroleum Gas) |
|
Application |
Logistical and Industrial Operations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Briggs & Stratton, 2 Cylinders Vertical V, Otto Cycle, Natural Aspiration |
|
Maximum Horsepower |
16.2 HP (12.0 kW) @ 3200 RPM (SAE J1349) |
|
Maximum Torque |
4.1 kgf.m (40 Nm) @ 2400 RPM (SAE J1349) |
|
Transmission Type |
Mechanical, 7 Forward + 3 Reverse |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Directional (4x2) |
|
Braking System |
Service Brake: Expandable Shoe; Parking Brake: Manual Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
5.60-15" F3 |
|
Tyre Size (Rear, Standard) |
5.50F x 18" or 6.00L x 18" |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
20 kg LPG Cylinder (Rechargeable or Interchangeable) |
|
Fuel Consumption |
Average 1.25 L/h |
|
PTO Type |
1300 RPM @ 2750 RPM Engine, 1000 RPM @ 2750 RPM Engine (4th and Reduced Gears), 1420 RPM @ 2750 RPM Engine (Reverse Gears) |
|
Hydraulic System |
25.6 L/min @ 3200 RPM |
|
Steering |
Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 50 A |
|
Length |
2650 mm |
|
Height |
1080 mm (to Steering Wheel) |
|
Base Weight |
Shipping: 1000 kg; Operating: 1120 kg |
|
Width |
1187 mm |
