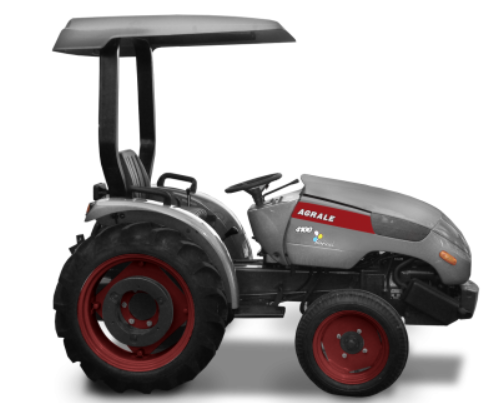

Agrale 4100.4 – Compact 4x4 Tractor for Small-Scale Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
4100.4 (4x4) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Small-Scale Agriculture, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Agrale M 93 ID, 1 Cylinder, 668 cm³, Natural Aspiration |
|
Maximum Horsepower |
14.7 HP (NBR ISO 1585), 13.2 HP (9.7 kW) PTO @ 2750 RPM |
|
Maximum Torque |
4.0 kgf.m (39.2 Nm) @ 2350 RPM (NBR ISO 1585) |
|
Transmission Type |
Mechanical, 7 Forward + 3 Reverse, Mechanical Lock via Lever |
|
Clutch |
Dry Single-Disc, Mechanical Actuation |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Differential Central |
|
Braking System |
Service Brake: Expandable Shoe; Parking Brake: Manual Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
4.00-15" or 6.5/80-12" |
|
Tyre Size (Rear, Standard) |
8.3/8-24" |
|
Tyre Size (Optional) |
Kit Pneus Garden |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
19.6 L |
|
PTO Type |
Mechanical, 1000 RPM @ 2750 RPM Engine (4th Gear and Reduced) |
|
Hydraulic System |
23.65 L/min @ 2750 RPM, 120 kgf/cm², Optional Remote Control (1 Command / 2 Ways) |
|
Rear 3-Point Hitch |
Category Special, 440 kg Capacity @ 610 mm from Hitch |
|
Steering |
Hydrostatic |
|
Electrical System |
12V Battery, 55 A.h; 14V Alternator, 55 A |
|
Length |
2450 mm |
|
Width |
1187 mm / 1200 mm |
|
Height |
1220 mm |
|
Base Weight |
1140 kg (Shipping), 1260 kg (Operating) |
|
Rear Track Width |
863 mm / 976 mm |
|
Front Track Width |
910 mm (Fixed) |
