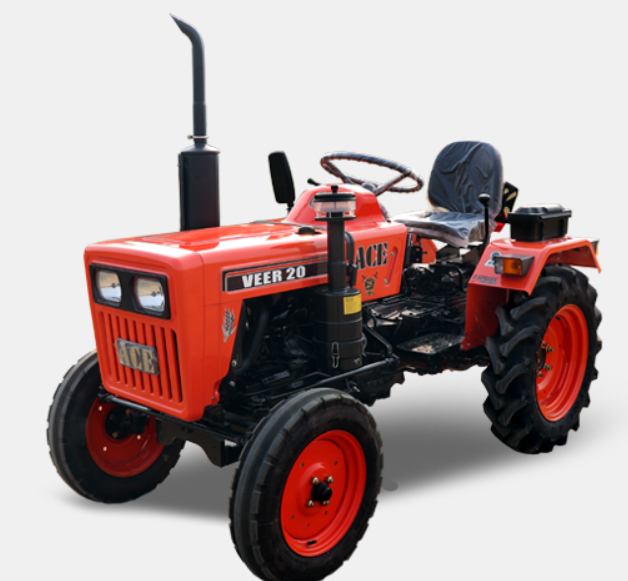

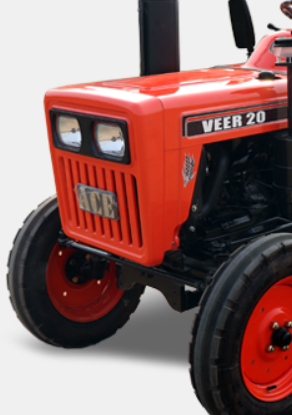

ACE Veer 20 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
AV 20-2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Direct Injection, 4 Stroke, Single Cylinder, Water Cooled |
|
Engine Power |
20 HP |
|
Number of Cylinders |
One |
|
Bore/Stroke |
100/110 mm |
|
Engine Capacity |
863.5 CC |
|
Clutch |
Dry Friction Plate, 200 mm |
|
Transmission Type |
Sliding Mesh Gear |
|
Number of Gears |
6 Forward + 3 Reverse |
|
Speed Range |
Forward: 28 km/h (Max); Reverse: 6.31 km/h (Max) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Disc Brake |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
5.25 x 14 inches (8 PR, 2WD) |
|
Rear Tyres |
8 x 18 inches (4 PR, 2WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
600 kg |
|
Hydraulic Pump |
Gear Type |
|
Hydraulics Type |
Position & Draft Control |
|
Power Take Off |
540 RPM (Front) |
|
Total Weight |
840 kg (Without/With Standard Ballast), 940 kg (Max Ballast) |
|
Electrical System |
12V, 50 Ah Battery (Exide), 12V, 43 Amp Alternator |
|
Additional Features |
ACE Clear Lens Hand Lamp, Digital Instrument Cluster, PC DC Side Levers, Casting Front Axle, Banket Oil Dam, Air Balner, Phone Charger & Pouch, Bottle Holder, USB Mobile Charger, Side Shift Lever |
|
Wheel Base |
1490 mm (2WD) |
|
Overall Length |
2550 mm (2WD) |
|
Overall Width |
1220 mm (2WD) |
|
Height |
1800 mm (2WD) |
|
Ground Clearance |
265 mm (2WD) |
