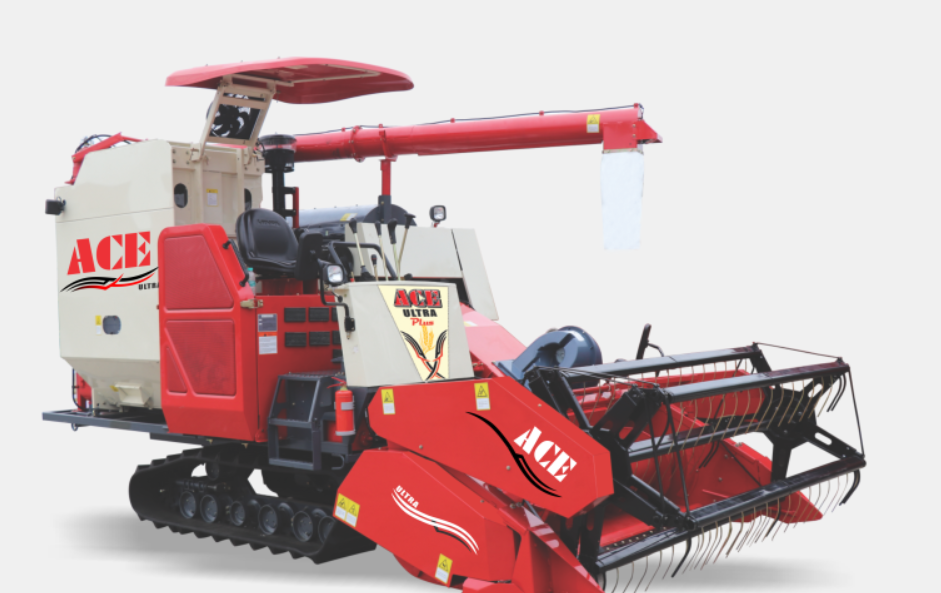

ACE ULTRA PLUS Harvester Combine – 100 HP Multicrop Harvester
Specifications
|
Specification |
Details |
|
Model |
ACE ULTRA PLUS |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy, soybean, corn, gram |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
water-cooled, four-stroke, turbocharged |
|
Gross Horsepower |
100 HP |
|
Transmission Type |
Hydrostatic transmission (HST 45cc, continuously variable-speed forward and backward) |
|
Gear Speeds (km/h) |
Low: 0–3.95, Standard: not specified, High: not specified |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
550 mm width x 90 mm link pitch x 53 links, ground pressure: not specified |
Components & Features
|
Specification |
Details |
|
Chassis |
Self-propelled crawler type, whole feed |
|

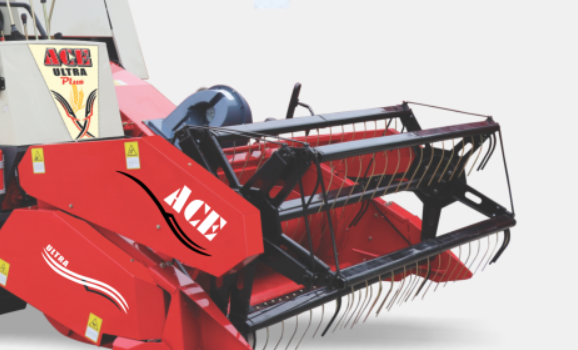

Cutter Bar Assembly |
Header width: 2190 mm, height adjustment: not specified |
|
Threshing System |
Longitudinal axial flow bar tooth type, threshing cylinder: 620 mm outer diameter x 1954 mm length, rotation speed: 580 RPM |
|
Grain Tank |
1600 L (approx. 0.96 m³, based on paddy density), 270° rotation range, unloading height range: 920–4200 mm |
|
Fuel Tank |
100 L |
|
Electrical System |
12 V battery, starting relays rated current: 50 A, voltage: 12 V |
|
Features |
Self-propelled crawler type, longitudinal axial flow threshing, suitable for wet fields, high productivity for paddy, soybean, corn, and gram, robust track system |
|
Width |
2190 mm |
|
Ground Clearance |
325 mm |
