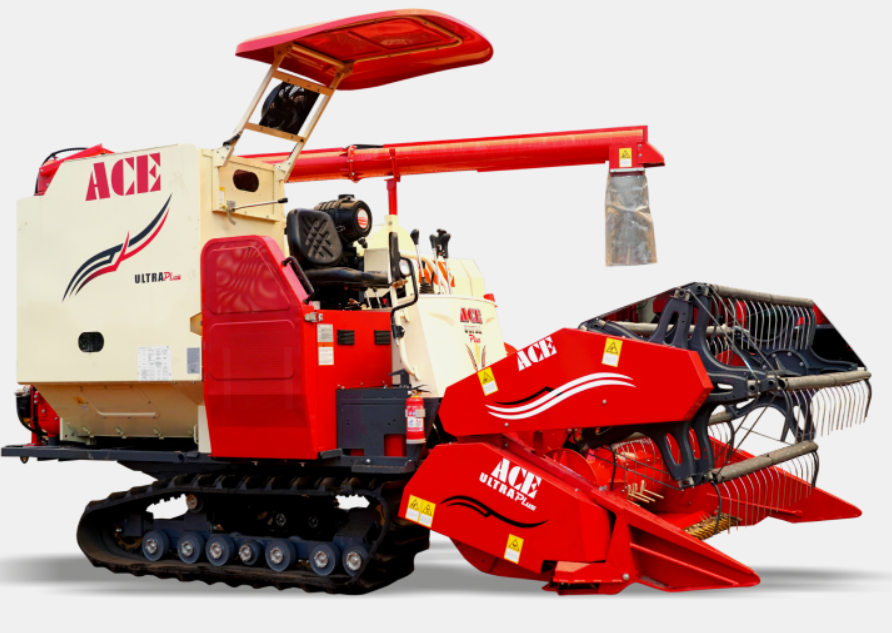

ACE ULTRA PLUS CENTRE ROLLER Harvester Combine – 100 HP Multicrop Harvester
Specifications
|
Specification |
Details |
|
Model |
ACE ULTRA PLUS CENTRE ROLLER |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy, soybean, corn, gram |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Quanchai 4C6-100M22, water-cooled, four-stroke, turbocharged |
|
Gross Horsepower |
100 HP @ 2400 RPM |
|
Transmission Type |
Hydrostatic transmission (HST 5200, R1008 gearbox, 3-gear range shifts, continuously variable-speed forward and backward) |
|
Gear Speeds (km/h) |
Low: 0–3.96, Standard: 0–5.14, Walk: 0–7.37 |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
550 mm width x 90 mm link pitch x 56 links, ground pressure: 21.2 kPa |
Components & Features
|
Specification |
Details |
|
Chassis |
Self-propelled crawler type, whole feed, centre roller design |
|

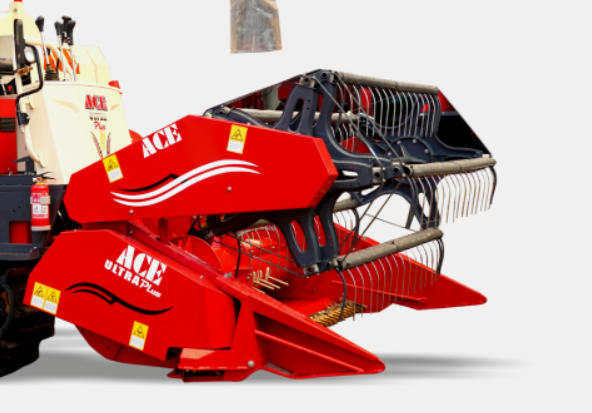

Cutter Bar Assembly |
Header width: 2300 mm, height adjustment: not specified |
|
Threshing System |
Longitudinal axial flow bar tooth type, threshing cylinder: 620 mm outer diameter x 2050 mm length, rotation speed: 560 RPM |
|
Cleaning System |
SMS/dust blower fan (optional), maize kit/mustard kit (optional) |
|
Grain Tank |
1600 L (approx. 0.96 m³, based on paddy density), 270° rotation range, unloading height range: 880–4500 mm |
|
Fuel Tank |
160 L |
|
Hydraulic Tank |
21 L |
|
Electrical System |
12 V maintenance-free battery, starting relays rated current: 50 A, voltage: 12 V |
|
Features |
Self-propelled crawler type with centre roller design, longitudinal axial flow threshing, suitable for wet fields, high productivity for paddy, soybean, corn, and gram, robust track system, SMS/dust blower fan (optional), maize kit/mustard kit (optional) |
|
Weight |
3400 kg |
|
Width |
2750 mm |
|
Length |
5200 mm |
|
Max Height |
2750 mm |
|
Ground Clearance |
325 mm |
