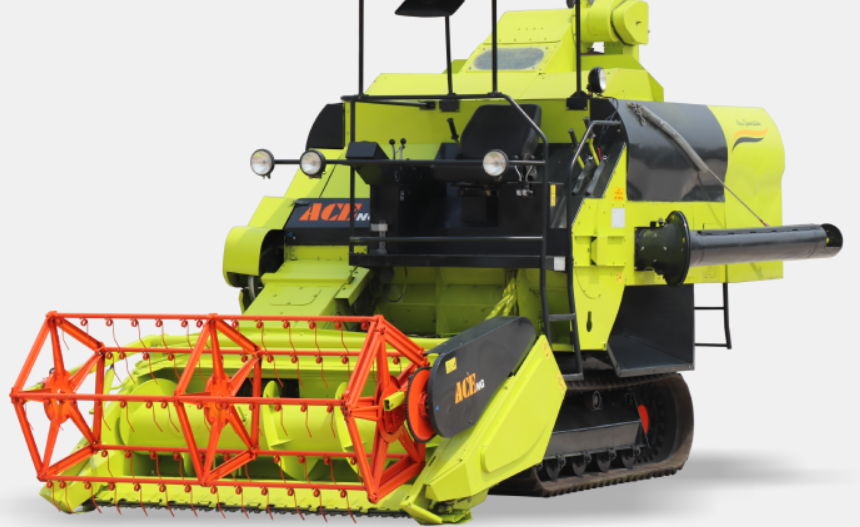

ACE NG Harvester Combine – 58 HP Paddy Harvester
Specifications
|
Specification |
Details |
|
Model |
ACE NG |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar 4TNV84T-DACE, four-stroke, water-cooled, direct injection, compression ignition, turbocharged diesel engine |
|
Gross Horsepower |
58 HP @ 3000 RPM |
|
Transmission Type |
Hydrostatic transmission |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Rubber reinforced tracks, suitable for wet fields |
Components & Features
|
Specification |
Details |
|
Cutter Bar Assembly |
Cutting width: 2100 mm (7 ft), hydraulic height adjustment, lift height: 925 mm from ground |
|
Threshing System |
Tangential Axial Flow (TAF), combination of threshing and separating rotor, drum: 470 mm diameter x 560 mm width, separating section: 1230 mm width, rotor speed: 500–1275 RPM, rice concave, concave clearance: entrance 13 mm, exit 6 mm (5th hole from back) |
|
Cleaning System |
Forced air cleaning fan with two speeds (1200 and 1500 RPM), volume of air controlled by fan shutter, cleaning area: 1.6 m² |
|
Grain Tank |
1300 L (approx. 0.78 m³, based on paddy density) |
|
Steering |
Easy control of levers for trouble-free and fatigue-free operation |
|
Fuel Tank |
105 L |
|
Hydraulic Tank |
25 L |
|
Features |
Specially designed for wet fields, minimal grain loss with TAF threshing system, fuel-efficient Yanmar engine, simple and efficient unloading with augers and universal joint, easy lever control for operator comfort, absolute filter for longer hydraulic component life, trouble-free operation in wet conditions, suitable for direct unloading in trolleys |
|
Weight |
3800 kg |
|
Width |
2600 mm |
|
Length |
5700 mm |
|
Max Height |
2950 mm (including canopy) |
|
Ground Clearance |
240 mm |
