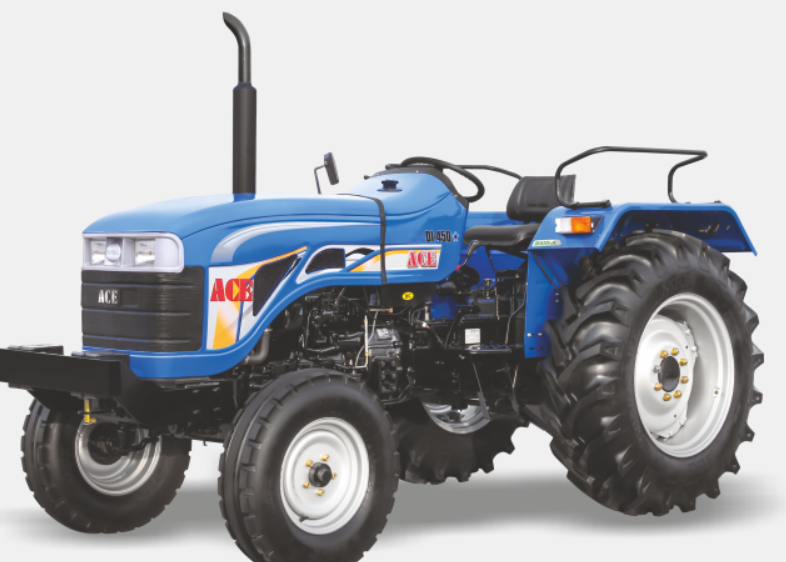

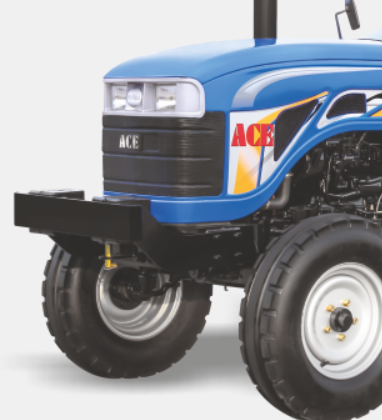

ACE FORMADI450 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
FORMADI450 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make |
Kirloskar |
|
Engine Type |
3 Cylinder, Direct Injection, Water Cooled, Naturally Aspirating Diesel Engine |
|
Engine Power |
45 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/120 mm |
|
Engine Capacity |
3120 CC |
|
Engine Rated RPM |
2000 |
|
Air Cleaner |
Dry Air Cleaner with Clogging Sensor |
|
Clutch |
Dry Type Dual Clutch, 280 mm |
|
Transmission Type |
Not Specified |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.4–31.9 km/h (with 13.6 x 28 tyres); Reverse: 3.1–12.1 km/h |
|
Front Axle |
Adjustable / Rigid (Optional) |
|
Final Drive |
Direct Rear Axle |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Brakes / Dry Disc (Optional) |
|
Steering Type |
Mechanical / Single Drop Arm (Power Steering - Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches (7.50 x 16 Optional) |
|
Rear Tyres |
13.6 x 28 inches (14.9 x 28 Optional) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg / 1800 kg (Optional) |
|
Hydraulics Type |
Open Centre, ADDC Live Hydraulics |
|
Power Take Off |
540 RPM, 6 Spline |
|
Total Weight |
2010 kg (With Oil) |
|
Electrical System |
88 Ah - 12V, 12V, 42 Amp Alternator |
|
Fuel Tank Capacity |
55 Litres |
|
Additional Features |
Double Auxiliary Valve, Attractive Meter Console, High Torque, Less Engine Wear, Excellent Fuel Efficiency |
|
Wheel Base |
2140 mm |
|
Overall Length |
3800 mm |
|
Overall Width |
1740 mm |
|
Height |
2370 mm |
|
Ground Clearance |
430 mm |
|
Turning Radius |
3.5 m, 3.33 m (With Braking) |
