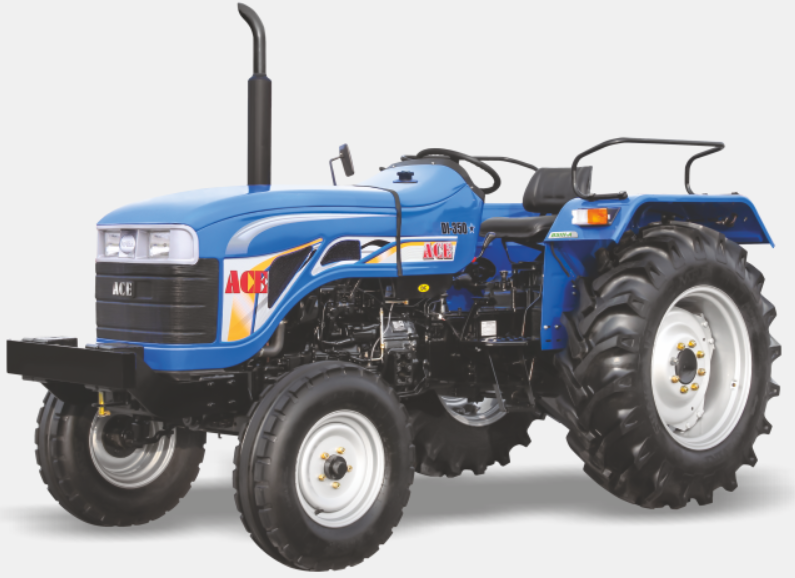

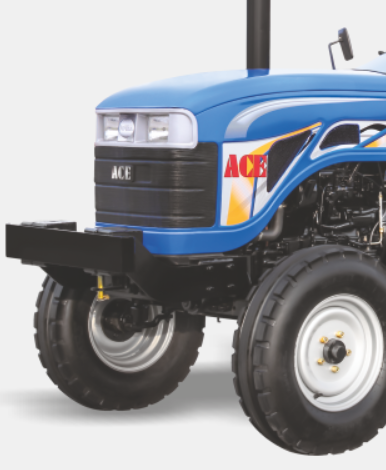

ACE FORMA DI350 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
FORMA DI350 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make |
Kirloskar |
|
Engine Type |
3 Cylinder, Direct Injection, Water Cooled |
|
Engine Power |
39 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
96/112 mm |
|
Engine Capacity |
2430 CC |
|
Engine Rated RPM |
2200 |
|
Air Cleaner |
Dry Type |
|
Clutch |
Dry Type Single Clutch, 280 mm |
|
Transmission Type |
Not Specified |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.3–32.4 km/h (with 13.6 x 28 tyres); Reverse: 2.3–11.4 km/h |
|
Front Axle |
Rigid |
|
Final Drive |
Direct Rear Axle |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Disc |
|
Steering Type |
Mechanical / Single Drop Arm |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches |
|
Rear Tyres |
13.6 x 28 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg |
|
Hydraulics Type |
Open Centre, ADDC Live Hydraulics |
|
Power Take Off |
540 RPM, 6 Spline |
|
Total Weight |
1905 kg (With Oil) |
|
Electrical System |
75 Ah - 12V, 12V, 42 Amp Alternator |
|
Fuel Tank Capacity |
55 Litres |
|
Additional Features |
Double Auxiliary Valve, Attractive Meter Console, High Torque |
|
Wheel Base |
2020 mm |
|
Overall Length |
3760 mm |
|
Overall Width |
1760 mm |
|
Height |
2310 mm |
|
Ground Clearance |
425 mm |
|
Turning Radius |
3.51 m (Without Brakes) |
