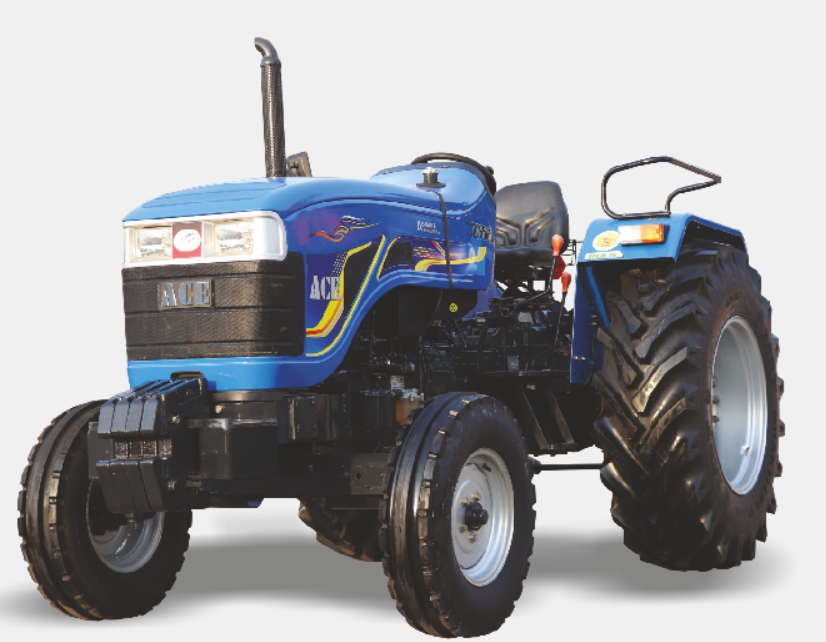

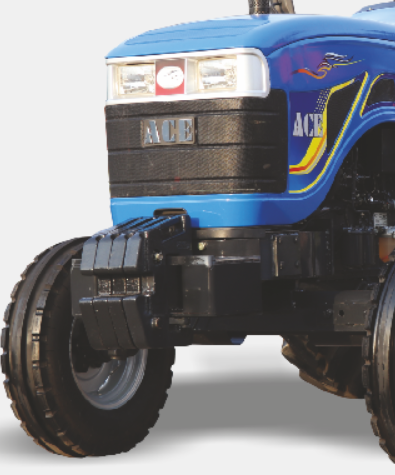

ACE DI6565AV – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
DI6565AV |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Cylinder, Water Cooled, 4 Stroke Direct Injection, Diesel Engine, Naturally Aspirated |
|
Engine Power |
60.5 HP |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
4088 CC |
|
Engine Rated RPM |
2000 |
|
Air Cleaner |
Dry Air Cleaner with Clogging Sensor |
|
Clutch |
Dual Clutch, 280 mm |
|
Transmission Type |
Constant Mesh Gear Box |
|
Number of Gears |
10 Gears (8 Forward + 2 Reverse) |
|
Speed Range |
Forward: 2.51–31 km/h (with 16.9 x 28 tyres); Reverse: 3.33–13.36 km/h |
|
Front Axle |
Adjustable |
|
Final Drive |
Direct Rear Axle |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.5 x 16 inches (8 PR) |
|
Rear Tyres |
16.9 x 28 inches (12 PR) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2000 kg |
|
Hydraulics Type |
Automatic Depth & Draught Control, Live Hydraulics, With Mix Mode |
|
Power Take Off |
540 Std. & CRPTO |
|
Total Weight |
2340 kg (With Oil) |
|
Electrical System |
110 Ah - 12V, 12V, 65 Amp Alternator |
|
Fuel Tank Capacity |
65 Litres |
|
Additional Features |
Attractive Meter Console, Heavy Duty Transmission |
|
Wheel Base |
2200 mm |
|
Overall Length |
3820 mm |
|
Overall Width |
1960 mm |
|
Height |
2225 mm |
|
Ground Clearance |
425 mm |
|
Turning Radius |
4.75 m |
