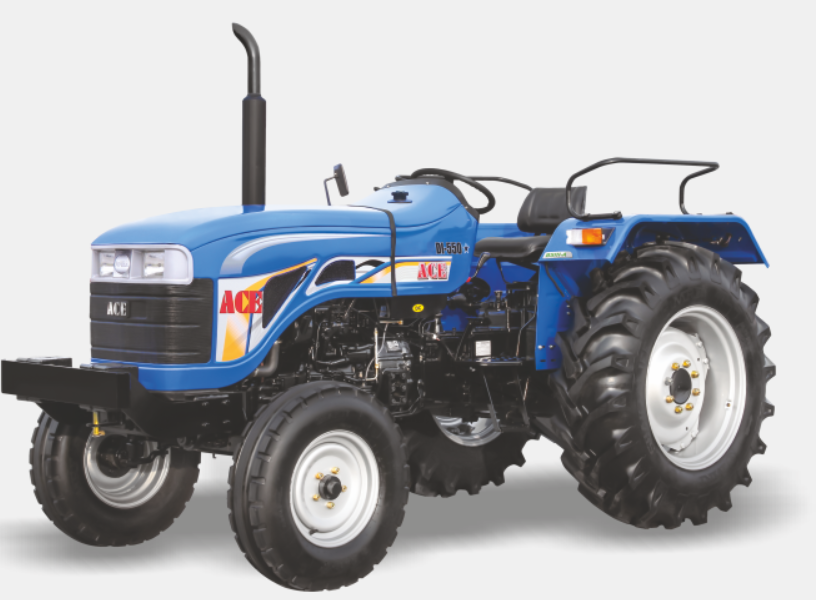

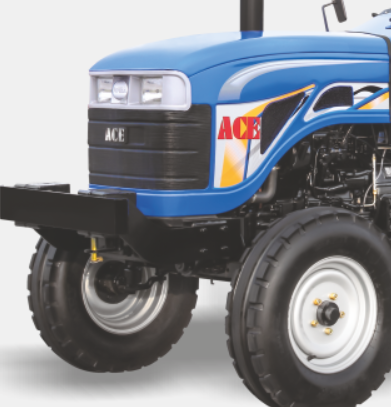

ACE DI550 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
DI550 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3R1040 (Kirloskar) 3 Cylinder, Direct Injection, Water Cooled, Naturally Aspirated Diesel |
|
Engine Power |
50 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/120 mm |
|
Engine Capacity |
3120 CC |
|
Rated RPM |
2200 RPM |
|
Clutch |
Dry Type Dual Clutch, 280 mm |
|
Transmission Type |
Centre Gear/Side Gear (Optional) |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.6–34.0 km/h; Reverse: 3.6–14.3 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes / Dry Disc (Optional) |
|
Steering Type |
Power Steering / Mechanical (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 inches |
|
Rear Tyres |
14.9 x 28 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1800 kg |
|
Hydraulics Type |
Open Centre, ADDC Live Hydraulics |
|
Power Take Off |
540 RPM, 6 Spline |
|
Total Weight |
2145 kg (With Oil) |
|
Electrical System |
12V, 88 Ah Battery, 12V, 42 Amp Alternator with Clogging Sensor |
|
Fuel Tank Capacity |
55 L |
|
Air Cleaner |
Dry Type with Clogging Sensor |
|
Additional Features |
Double Auxiliary Valve, Oil Cooler, Adjustable/Rigid Front Axle (Optional) |
|
Wheel Base |
2140 mm |
|
Overall Length |
3800 mm |
|
Overall Width |
1850 mm |
|
Height |
2330 mm |
|
Ground Clearance |
430 mm |
|
Turning Radius |
3.8 m (3.45 m with Braking) |
