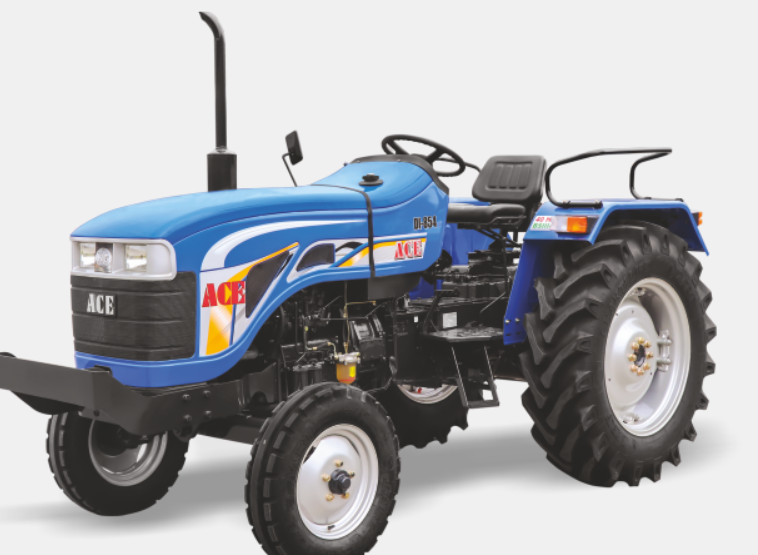

ACE DI-854 NG 1800 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
ACE DI-854 NG 1800 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3 Cylinder, Direct Injection, Water Cooled, Naturally Aspirated Diesel |
|
Engine Model |
A30 |
|
Engine Power |
32 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/110 mm |
|
Engine Capacity |
2858 CC |
|
Engine Rated RPM |
1800 |
|
Maximum Torque |
155 Nm |
|
Clutch |
Dry Type-Single, 280 mm |
|
Transmission Type |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.29–27.78 km/h; Reverse: 2.86–11.31 km/h |
|
Final Drive |
Direct Rear Axle |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Disc (Serviceable) / Oil Immersed Disc Brake (Optional) |
|
Steering Type |
Single Drop Arm |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches (2WD) |
|
Rear Tyres |
12.4 x 28 inches (2WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg |
|
Hydraulics Type |
Automatic Depth & Draft Control, Live Hydraulics, with Mix Mode |
|
Air Cleaner |
Dry Air Cleaner With Clogging Sensor |
|
Power Take Off |
540 RPM, 6 Spline |
|
Total Weight |
1920 kg (with oil) |
|
Fuel Tank Capacity |
55 L |
|
Electrical System |
75 Ah - 12V Battery (Maintenance Free), 12V-42 Amp Alternator |
|
Additional Features |
BOSCH (Fuel Injection System), Attractive Meter Console, Rigid Front Axle |
|
Wheel Base |
1960 mm |
|
Overall Length |
3650 mm |
|
Overall Width |
1700 mm |
|
Height |
2300 mm (with Tyre) |
|
Ground Clearance |
395 mm |
|
Turning Radius |
3.1 m (with brake) |
