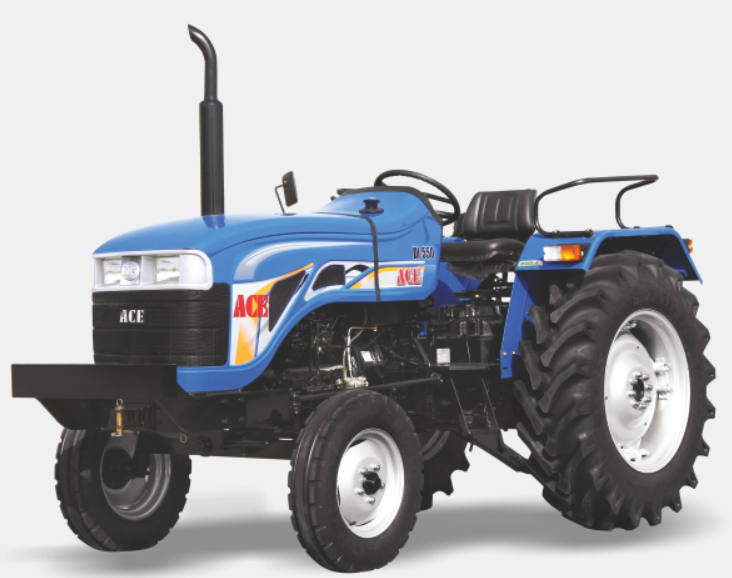

ACE DI-550 NG – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
DI-550 NG |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
A50 3 Cylinder, Direct Injection, Water Cooled, Naturally Aspirated Diesel |
|
Engine Power |
50 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
3065 CC |
|
Rated RPM |
2100 RPM |
|
Maximum Torque |
202 Nm |
|
Clutch |
Dry Type Dual Clutch, 280 mm (Single Clutch Optional) |
|
Transmission Type |
Direct |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.68–35.16 km/h; Reverse: 3.76–14.85 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Disc (Serviceable Brake) / Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering / Single Drop Arm (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 inches (6.00 x 16 inches, 8 PR Optional) |
|
Rear Tyres |
14.9 x 28 inches (16.9 x 28 inches, 12 PR Optional) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1800 kg (1200 kg Optional) |
|
Hydraulics Type |
Automatic Depth & Draught Control, Live Hydraulics, With Mix Mode |
|
Power Take Off |
540 RPM, 6 Spline (1000 RPM, 21 Spline Optional) |
|
Total Weight |
2010 kg (With Oil) |
|
Electrical System |
12V, 88 Ah Battery (Maintenance Free), 12V, 42 Amp Alternator with Clogging Sensor |
|
Fuel Tank Capacity |
55 L |
|
Air Cleaner |
Dry Type with Clogging Sensor |
|
Additional Features |
Attractive Meter Console, Rigid/Adjustable Front Axle |
|
Wheel Base |
1960 mm |
|
Overall Length |
3660 mm |
|
Overall Width |
1830 mm |
|
Height |
2300 mm |
|
Ground Clearance |
430 mm |
|
Turning Radius |
3.03 m (3.38 m with Braking) |
