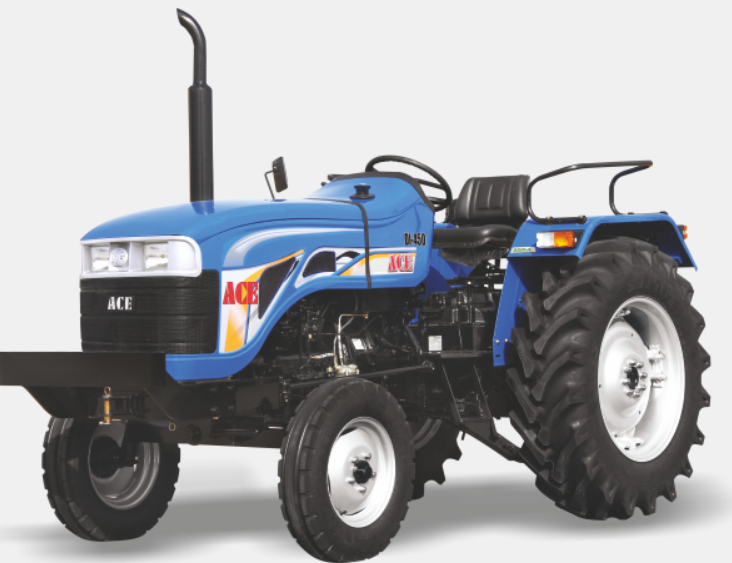

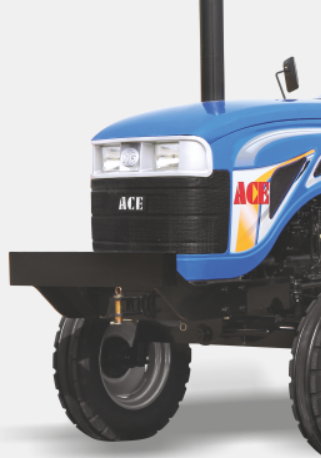

ACE DI-450 NG – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
DI-450 NG |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
A45 3 Cylinder, Direct Injection, Water Cooled, Naturally Aspirated Diesel |
|
Engine Power |
45 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/110 mm |
|
Engine Capacity |
2858 CC |
|
Rated RPM |
2000 RPM |
|
Maximum Torque |
185 Nm |
|
Clutch |
Dry Type Dual Clutch, 280 mm (Single Clutch Optional) |
|
Transmission Type |
Direct |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.51–31.91 km/h; Reverse: 3.51–13.87 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Disc (Serviceable Brake) / Oil Immersed Disc Brakes |
|
Steering Type |
Mechanical, Single Drop Arm (Power Steering Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches (8 PR, 7.50 x 16 Optional) |
|
Rear Tyres |
13.6 x 28 inches (12 PR, 14.9 x 28 Optional) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg (1800 kg Optional) |
|
Hydraulics Type |
Automatic Depth & Draught Control, Live Hydraulics, With Mix Mode |
|
Power Take Off |
540 RPM, 6 Spline (1000 RPM, 21 Spline Optional) |
|
Total Weight |
1950 kg (With Oil) |
|
Electrical System |
12V, 88 Ah Battery, 12V, 42 Amp Alternator |
|
Fuel Tank Capacity |
55 L |
|
Air Cleaner |
Dry Type with Clogging Sensor |
|
Additional Features |
Attractive Meter Console, Rigid/Adjustable Front Axle |
|
Wheel Base |
1960 mm |
|
Overall Length |
3660 mm |
|
Overall Width |
1740 mm |
|
Height |
2300 mm |
|
Ground Clearance |
425 mm |
|
Turning Radius |
3.02 m (3.38 m with Braking) |
