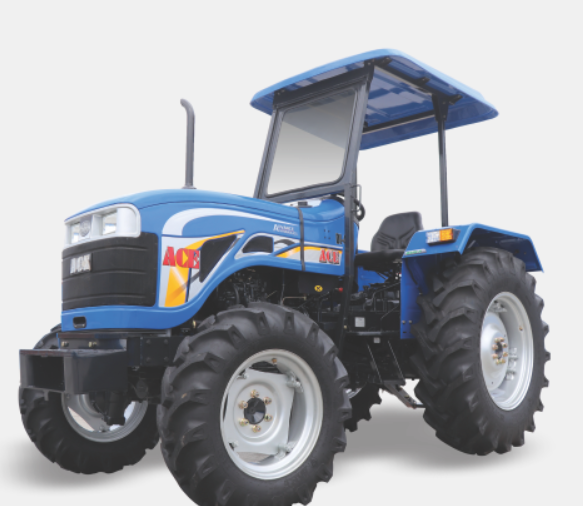

ACE DI-450 NG 4WD – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
DI-450 NG 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3 Cylinder, Direct Injection, Water Cooled |
|
Engine Power |
45 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/110 mm |
|
Engine Capacity |
2858 CC |
|
Engine Rated RPM |
2000 |
|
Air Cleaner |
Dry Type |
|
Clutch |
Single Clutch, 280 mm (Dual Optional) |
|
Transmission Type |
Not Specified |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.51–31.91 km/h (with 13.6 x 28 tyres); Reverse: 3.51–13.87 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Brake |
|
Steering Type |
Power Steering / Single Drop Arm (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8 x 18 inches (4WD) |
|
Rear Tyres |
13.6 x 28 inches (12 PR, 4WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg |
|
Hydraulics Type |
Automatic Depth & Draught Control, Live Hydraulics, With Mix Mode |
|
Power Take Off |
540 RPM, 6 Spline (Front Axle) |
|
Total Weight |
2170 kg (With Oil) |
|
Electrical System |
88 Ah - 12V (Maintenance Free), 12V, 42 Amp Alternator |
|
Fuel Tank Capacity |
57 Litres |
|
Additional Features |
Attractive Meter Console, High Torque, Powerful Engine |
|
Overall Length |
3740 mm (4WD) |
|
Overall Width |
1740 mm (4WD) |
|
Height |
2300 mm (4WD) |
|
Ground Clearance |
370 mm (4WD) |
|
Turning Radius |
4.3 m (With Brakes), 4.7 m (Without Brakes) |
