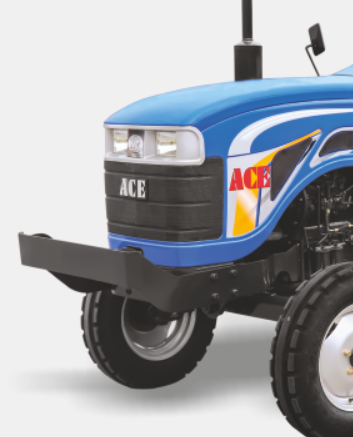

ACE DI-350 NG – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
DI-350 NG |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
A40 3 Cylinder, Direct Injection, Water Cooled, Naturally Aspirated Diesel |
|
Engine Power |
40 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/110 mm |
|
Engine Capacity |
2858 CC |
|
Rated RPM |
1800 RPM |
|
Clutch |
Dry Type Single Clutch, 280 mm (Dual Optional) |
|
Transmission Type |
Direct |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.37–28.72 km/h; Reverse: 2.96–11.69 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes (Serviceable Brake) |
|
Steering Type |
Mechanical, Single Drop Arm (Power Steering Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches (8 PR) |
|
Rear Tyres |
13.6 x 28 inches (12 PR) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg |
|
Hydraulics Type |
Automatic Depth & Draught Control, Live Hydraulics, With Mix Mode |
|
Power Take Off |
540 RPM, 6 Spline (1000 RPM, 21 Spline Optional) |
|
Total Weight |
1930 kg (With Oil) |
|
Electrical System |
12V, 75 Ah Battery (Maintenance Free), 12V, 42 Amp Alternator with Clogging Sensor |
|
Fuel Tank Capacity |
55 L |
|
Air Cleaner |
Dry Type |
|
Additional Features |
Attractive Meter Console, Rigid/Adjustable Front Axle |
|
Wheel Base |
1960 mm |
|
Overall Length |
3660 mm |
|
Overall Width |
1740 mm |
|
Height |
2300 mm |
|
Ground Clearance |
420 mm |
|
Turning Radius |
3.02 m (3.38 m with Braking) |
