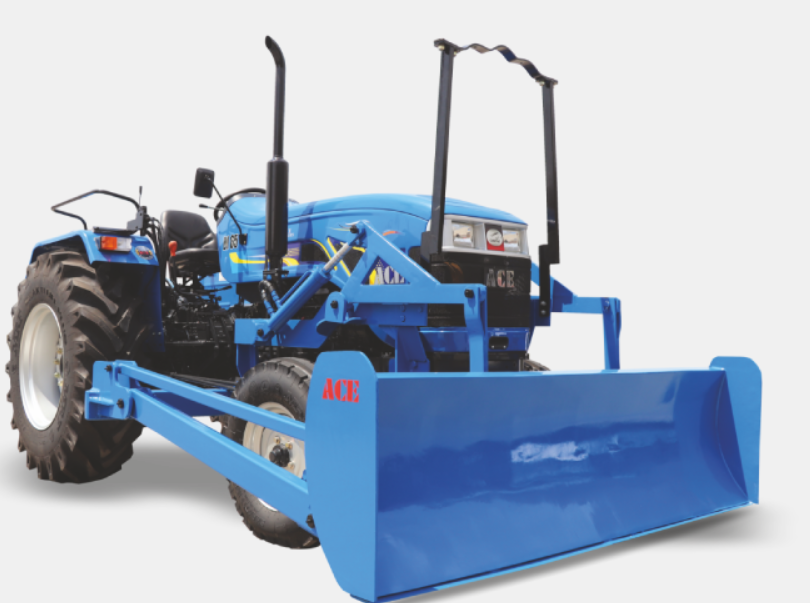

ACE Chetak DI 65 with Front End Loader – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
Chetak DI 65 with Front End Loader |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor with Front End Loader |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
A50 HT 4 Cylinder, Direct Injection, Water Cooled, Naturally Aspirated Diesel |
|
Engine Power |
50 HP / 36.9 kW |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
4088 CC |
|
Rated RPM |
2200 RPM |
|
Maximum Torque |
245 Nm @ 1300 RPM |
|
Clutch |
Dual Clutch, Friction Plate with 7 Pads, Cerametallic, 280 mm |
|
Transmission Type |
Constant Mesh |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.3–34 km/h @ 2200 RPM; Reverse: 3.00–12 km/h @ 2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 inches (Loader Special) |
|
Rear Tyres |
16.9 x 28 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Pump |
High Flow (Tandem Pump), 35 CC |
|
Front End Loader Specifications |
Maximum Operating Height: 4200 mm, Load Over Height: 3570 mm, Pin Height: 3580 mm, Dump Height: 2690 mm, Reach at Ground: 1980 mm, Reach at Full Dump: 630 mm, Roll Back at Ground: 50 degrees, Dump Angle: 45 degrees, Bucket Volume Capacity: 0.60 cu.m, Safe Working Load: 750 kg |
|
Power Take Off |
540 RPM |
|
Electrical System |
12V, 88 Ah Battery, 12V, 42 Amp Alternator with Clogging Sensor |
|
Air Cleaner |
Dry Air Cleaner with Clogging Sensor |
|
Additional Features |
Heavy Duty Front Axle, Front End Loader |
