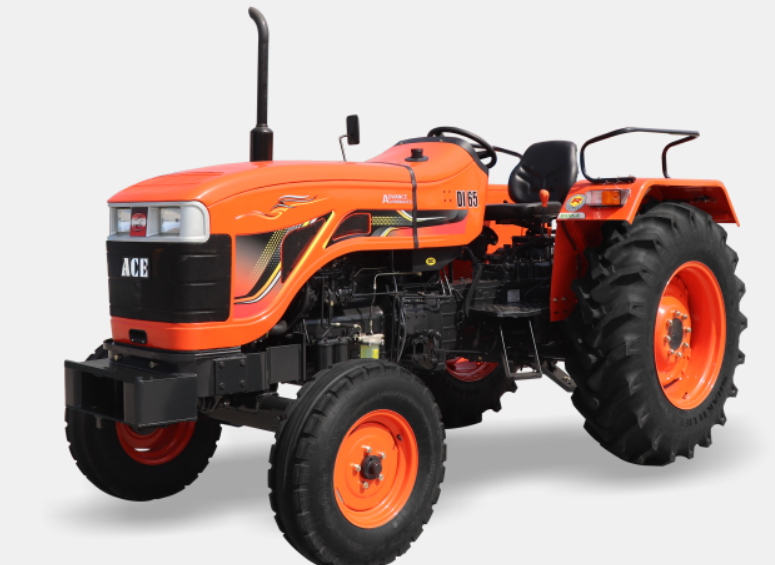

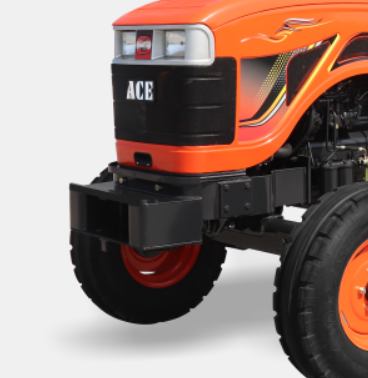

ACE Chetak DI 65 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
Chetak DI 65 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
A50 HT 4 Cylinder, Water Cooled, 4 Stroke Direct Injection, Naturally Aspirated Diesel |
|
Engine Power |
50 HP |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
4088 CC |
|
Rated RPM |
2200 RPM |
|
Clutch |
Dual Clutch, 280 mm |
|
Transmission Type |
Constant Mesh |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Speed Range |
Forward: 2.64–32.27 km/h; Reverse: 3.5–14.04 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 inches (8 PR) |
|
Rear Tyres |
14.9 x 28 inches (12 PR) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2000 kg |
|
Hydraulics Type |
Automatic Depth & Draught Control, Live Hydraulics, With Mix Mode |
|
Power Take Off |
540 RPM (Standard) & CRPTO |
|
Total Weight |
2160 kg (With Oil) |
|
Electrical System |
12V, 88 Ah Battery, 12V, 42 Amp Alternator with Clogging Sensor |
|
Fuel Tank Capacity |
65 L |
|
Air Cleaner |
Dry Type |
|
Additional Features |
Attractive Meter Console, Adjustable Front Axle, Natural Safety Switch |
|
Wheel Base |
2130 mm |
|
Overall Length |
3840 mm |
|
Overall Width |
1810 mm |
|
Height |
2245 mm |
|
Ground Clearance |
400 mm |
|
Turning Radius |
4.6 m |
