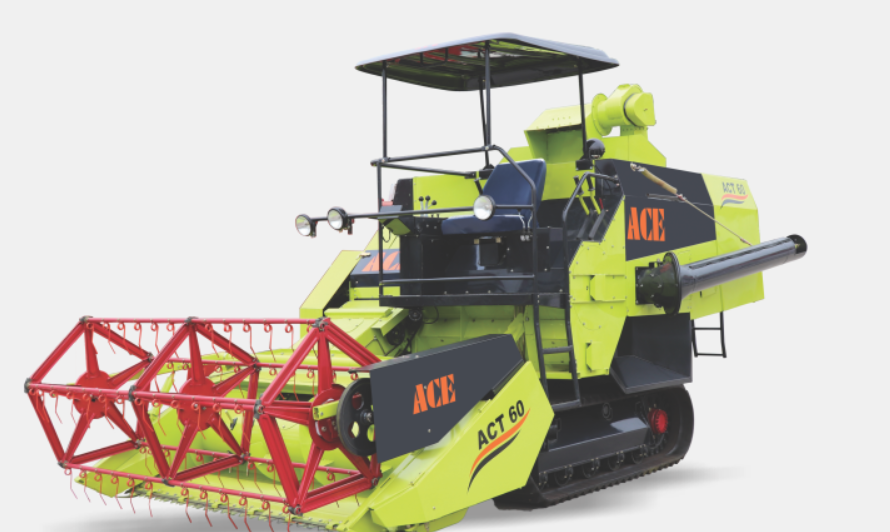

ACE ACT 60 Harvester Combine – 62 HP Paddy Harvester
Specifications
|
Specification |
Details |
|
Model |
ACT 60 |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
TATA 4SP RTV, water-cooled |
|
Gross Horsepower |
62 HP |
|
Transmission Type |
Imported transmission, specially designed for wet fields |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Tracks specially designed for wet fields, 1250 mm ground clearance |
Components & Features
|
Specification |
Details |
|

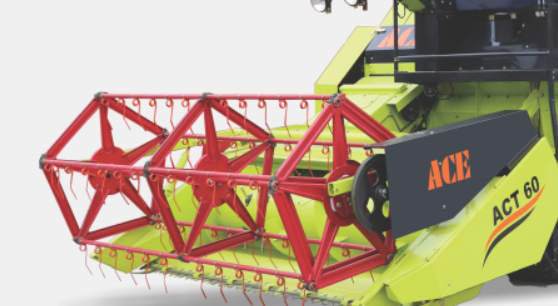

Cutter Bar Assembly |
Cutting width: 2140 mm (2.14 m), height adjustment: not specified |
|
Threshing System |
Tangential Axial Flow (TAF), threshing drum: 460 mm diameter x 670 mm width, rotor speed: 800–1375 RPM, rice concave, threshing drum concave clearance: not specified |
|
Cleaning System |
Forced air cleaning fan with ten speeds (1200 and 1500 RPM), air controlled by fan shutter, cleaning area: 1.6 m² |
|
Grain Tank |
1210 L (approx. 0.7 m³, 700 kg of paddy), universal joint type unloading system |
|
Fuel Tank |
105 L |
|
Hydraulic Tank |
25 L |
|
Features |
Specially designed for wet fields, minimal grain loss with TAF threshing system, fuel-efficient TATA engine, simple and efficient unloading with auger and universal joint, low control effort for operator comfort, absolute filter for longer hydraulic component life, trouble-free operation in wet conditions |
|
Width |
2500 mm |
|
Length |
4410 mm |
|
Max Height |
3000 mm (cutting condition) |
