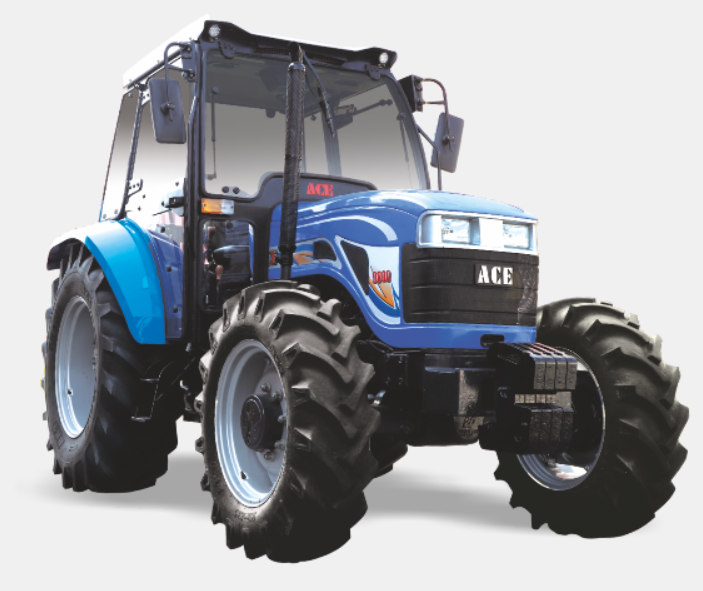

ACE 9000 4WD – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
9000 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
A90 TC 4 Cylinder, Turbocharged with Intercooler, Direct Injection, Water Cooled (Cold Start Kit Optional) |
|
Engine Power |
88.4 HP / 65 kW |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
4088 CC |
|
Rated RPM |
2200 RPM |
|
Maximum Torque |
355 Nm @ 1450 RPM |
|
Clutch |
Double Clutch |
|
Transmission Type |
Synchro Shuttle |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Speed Range |
Forward: 1.7–35.08 km/h @ 2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes, Mechanically Actuated, Hand Brake: Pawl and Ratchet Type |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
12.4 x 24 inches |
|
Rear Tyres |
18.4 x 30 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2500 kg (Hitch Point) |
|
Hydraulics Type |
Automatic Draft Control, 3 Point Linkage (CAT II), 1SA+1DA Auxiliary Hydraulic Circuit |
|
Power Take Off |
540/540E RPM, Independent, Mechanically Actuated (Hand Operated) |
|
Total Weight |
2976 kg |
|
Electrical System |
12V, 110 Ah Battery, 12V, 65 Amp Alternator, Seven Pin (Round) Trailer Socket |
|
Fuel Tank Capacity |
65 L |
|
Air Cleaner |
Dry Air Cleaner with Clogging Sensor |
|
Additional Features |
Trailer Hitch (Rotating Type, Optional), Horizontally Adjustable Driver Seat, Fuel Indicator Gauge, Front Tow Hook, ROPS, Front Weight Carrier (Hanging Weight Optional), Rear Weight, DCV (Double Control Valve) |
|
Wheel Base |
2235 mm |
|
Overall Length |
4020 mm |
|
Overall Width |
2040 mm |
|
Height |
2670 mm |
|
Ground Clearance |
420 mm |
|
Turning Diameter |
8042 mm (Left) - 8051 mm (Right) with Brakes |
|
Front Track |
1450–1820 mm |
|
Rear Track |
1450–1900 mm |
