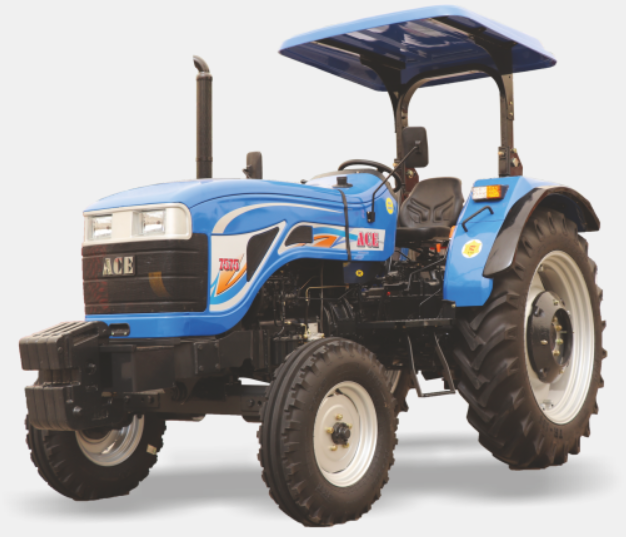

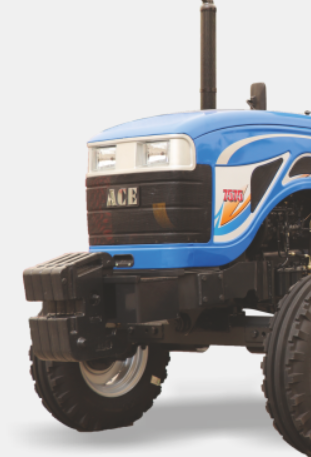

ACE 7575 – Agricultural Tractor by ACE

Images:

1

2

Specifications

Specification	Details
Tractor Model	7575
Vehicle Category	Tractor
Fuel Type	Diesel
Application	Agricultural Tractor

Frame & Drivetrain

Specification	Details
Engine Type	A75TC 4 Cylinder, Turbocharged, Direct Injection, Water Cooled
Engine Power	74.8 HP / 55 kW
Number of Cylinders	Four
Bore/Stroke	105/118 mm
Engine Capacity	4088 CC
Rated RPM	2200 RPM
Maximum Torque	305 Nm @ 1450 RPM
Clutch	Dual Clutch
Transmission Type	Sliding Mesh
Number of Gears	8 Forward + 2 Reverse
Speed Range	Forward: 3.17–38.28 km/h @ 2200 RPM

Suspension & Brakes

Specification	Details
Brakes	Oil Immersed Brake, Mechanically Actuated, Hand Brake: Pawl and Ratchet Type
Steering Type	Power Steering

Wheels & Tyres

Specification	Details
Front Tyres	7.50 x 16 inches
Rear Tyres	13.6 x 38 inches

Components & Features

Specification	Details
Maximum Lifting Capacity	2000 kg (Hitch Point)
Hydraulics Type	Automatic Draft Control, 3 Point Linkage (CAT II), 1 Spool Valve, 1SA+1DA Auxiliary Hydraulic Circuit
Power Take Off	540 RPM, Mechanically Actuated (Hand Operated, Foot Operated Pressed Downward to Disengage)
Total Weight	2600 kg
Electrical System	12V, 110 Ah Battery, 12V, 42 Amp Alternator, Seven Pin (Round) Trailer Socket
Fuel Tank Capacity	65 L
Air Cleaner	Dry Air Cleaner with Clogging Sensor
Additional Features	Trailer Hitch (Horizontally Adjustable with SMV Emblem), Fuel Indicator Gauge, Front Tow Hook, Front Weight Carrier with 4 Hanging Weights, One Rear Weight Each Side, DCV (Double Control Valve)
Wheel Base	2130 mm
Overall Length	4035 mm
Overall Width	1880 mm
Height	2685 mm
Ground Clearance	420 mm
Turning Diameter	6820 mm (Left) - 6870 mm (Right) with Brakes, 7880 mm (Left) - 8000 mm (Right) without Brakes
Front Track	1395 mm (Standard) - 1505 mm
Rear Track	1493 mm
