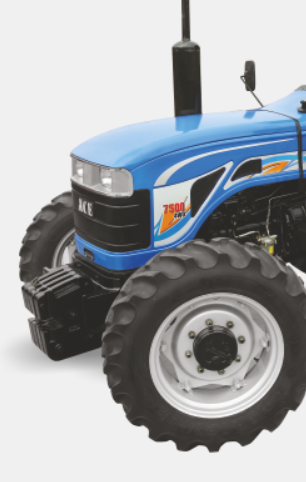

ACE 7500 – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
7500 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Cylinder, Turbocharged Diesel Engine (Cold Start Kit Optional) |
|
Engine Power |
74.8 HP / 55 kW |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Engine Capacity |
4088 CC |
|
Engine Rated RPM |
2200 |
|
Air Cleaner |
Dry Air Cleaner with Clogging Sensor |
|
Max Torque |
305 Nm @ 1450 RPM |
|
Clutch |
Dual Clutch |
|
Transmission Type |
Synchro Shuttle |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Speed Range |
Forward: 1.52–31.25 km/h @ 2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Disc Brakes, Mechanically Actuated |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 inches (2WD); 11.2 x 24 inches (4WD) |
|
Rear Tyres |
16.9 x 30 inches |
Components & Features
|
Specification |
Details |
|
Drive |
2WD / 4WD |
|
Maximum Lifting Capacity |
2200 kg |
|
Hydraulics Type |
Automatic Draft Control, 3 Point Linkage CAT II, 1SA+1DA Auxiliary Hydraulic Circuit |
|
Power Take Off |
540/540 E, Mechanically Actuated, Hand Operated |
|
Total Weight |
2650 kg (2WD); 2841 kg (4WD) |
|
Electrical System |
12V, 110 Ah Battery, 12V, 65 Amp Alternator, Seven Pin (Round) Trailer Socket |
|
Fuel Tank Capacity |
65 Litres |
|
Additional Features |
Trailer Hitch (Rotating Type, Optional), Horizontally Adjustable Driver Seat, Fuel Indicator Gauge, Front Weight Carrier (Hanging Weight Optional), Rear Weight Optional |
|
Wheel Base |
2135 mm (2WD); 2235 mm (4WD) |
|
Overall Length |
3890 mm (2WD); 3990 mm (4WD) |
|
Overall Width |
2010 mm |
|
Height |
2650 mm |
|
Ground Clearance |
430 mm (2WD); 405 mm (4WD) |
|
Turning Diameter |
Without Brakes: 10.4 m (L) - 10.1 m (R) (2WD); 9.66 m (L) - 9.81 m (R) (4WD) |
