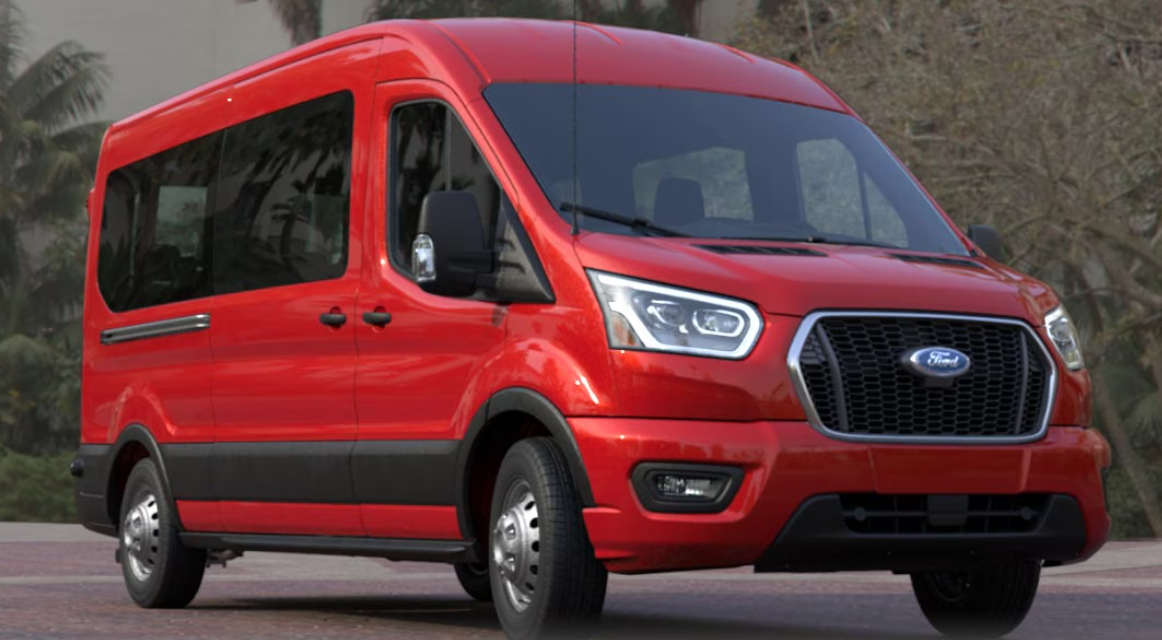

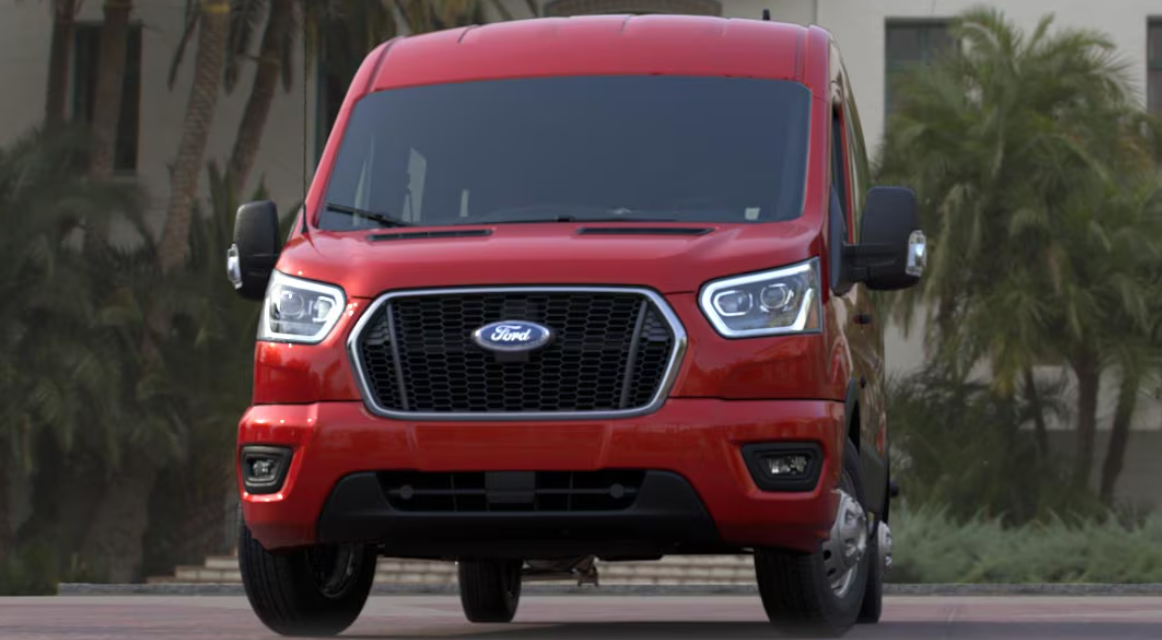

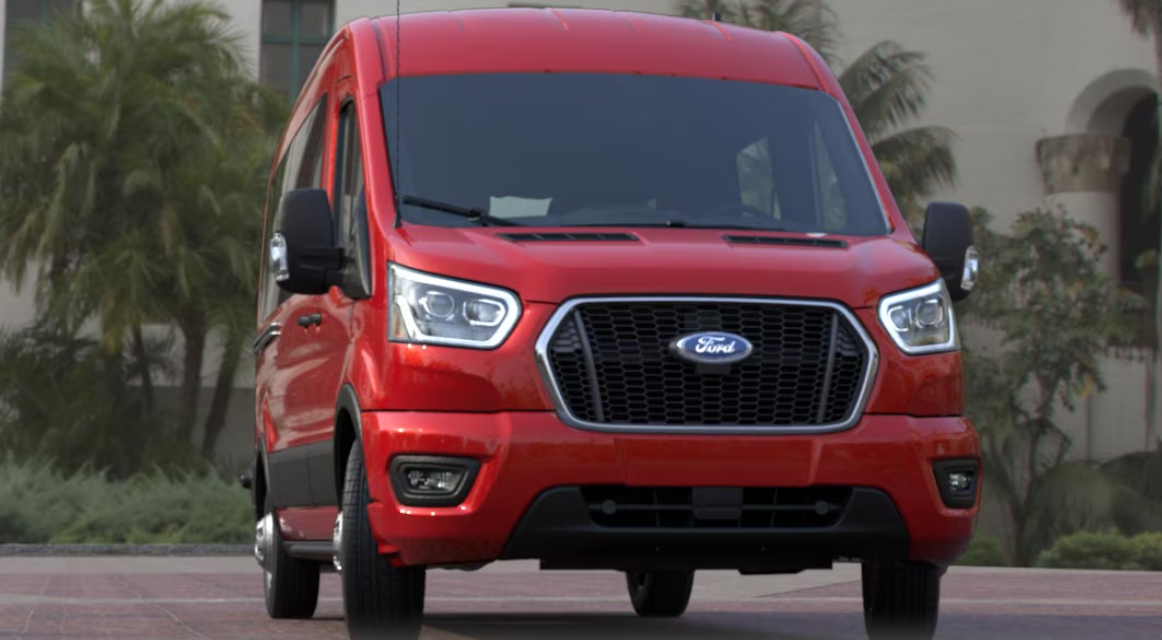

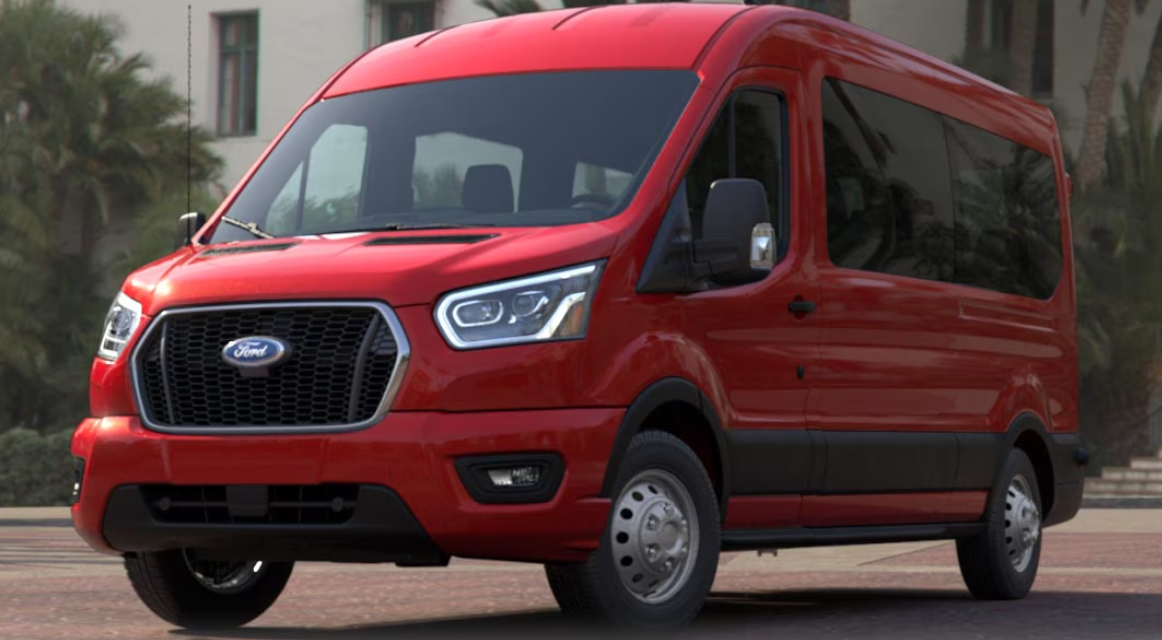

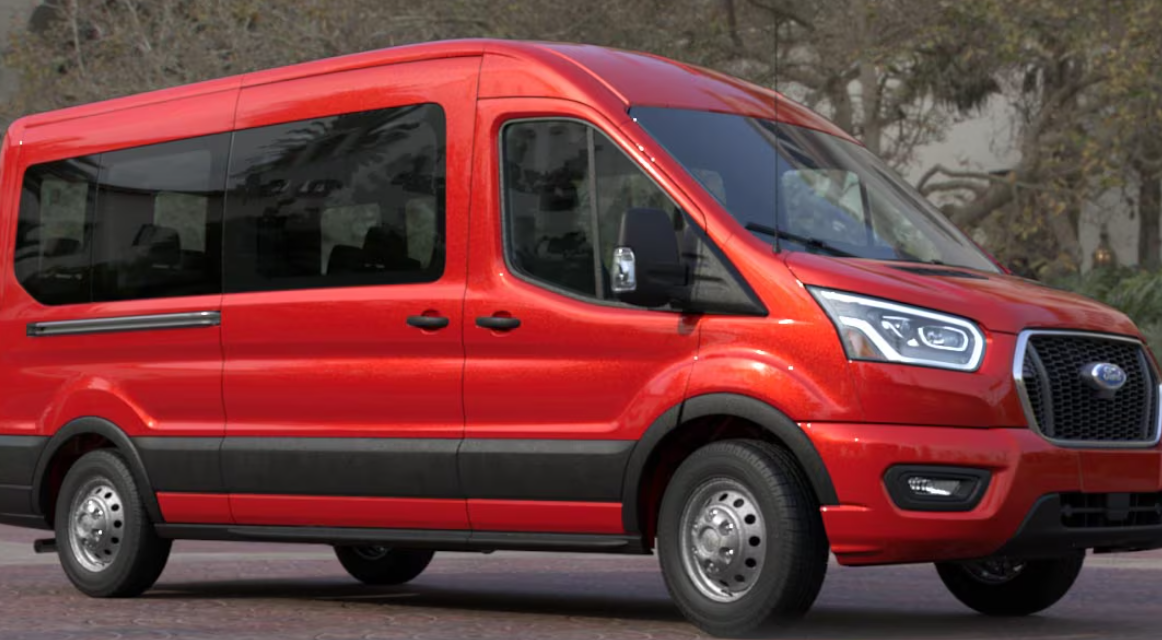

2025 Ford Transit Passenger Van XL – Spacious Commercial Transport
Specifications
|
Specification |
Details |
|
Model |
Transit Passenger Van XL |
|
Vehicle Category |
Passenger Van |
|
Fuel Type |
Gasoline |
|
Application |
Commercial, passenger, transport |
|
Starting Price (2025) |
$56,400, excludes destination/delivery fee, taxes, and optional equipment |
|
Color Options |
Exterior: Oxford White, Carbonized Gray, Agate Black, Abyss Gray, Avalanche, Ingot Silver, Race Red; Interior: Dark Palazzo Gray vinyl or cloth |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3.5L PFDi V6 (275 HP, 400 lb-ft), available 3.5L EcoBoost V6 (310 HP, 410 lb-ft) |
|
Gross Horsepower |
275 HP @ 6,500 rpm (3.5L PFDi), 310 HP @ 5,000 rpm (3.5L EcoBoost) |
|
Torque |
400 lb-ft @ 3,250 rpm (3.5L PFDi), 410 lb-ft @ 3,250 rpm (3.5L EcoBoost) |
|
Transmission Type |
10-speed automatic |
|
Drivetrain |
Rear-Wheel Drive (RWD), available Intelligent All-Wheel Drive (AWD) |
|
Max Towing Capacity |
4,500 lbs |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent MacPherson strut with stabilizer bar |
|
Rear Suspension |
Leaf springs with gas-pressurized shocks |
|
Brakes |
Four-wheel disc brakes with ABS, electronic brakeforce distribution |
Components & Features
|
Specification |
Details |
|
Seating |
Up to 15 passengers (12-passenger standard for Long Length: 1st Row: 2 seats, 2nd Row: 3 seats, 3rd Row: 3 seats, 4th Row: 4 seats; 15-passenger standard for Extended Length: 1st Row: 2 seats, 2nd Row: 3 seats, 3rd Row: 3 seats, 4th Row: 3 seats, 5th Row: 4 seats) |
|
Interior Features |
4-inch multi-function display with AM/FM stereo, Bluetooth, 8 speakers, dual USB ports, single-zone manual climate control, Dark Palazzo Gray vinyl or cloth seats, 2-way manual driver and passenger seats with inboard armrests, rear seats with reclining function (except last row), medium center console with integrated shifter and dual cupholders, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, pedestrian detection, forward collision warning, lane-keeping system, auto high beams), cruise control with adjustable speed limiting device, FordPass Connect, available SYNC 4 with 12-inch display, SiriusXM with 360L, HD Radio, navigation, available all-weather floor mats, two auxiliary 12-volt powerpoints (instrument panel, center console) |
|
Exterior Features |
16-inch steel wheels with hubcaps, 235/65R16 all-season tires, body-colored front bumper with fog lamps, 50/50 hinged rear door (180-degree opening for Low/Medium Roof, 253-degree for High Roof), privacy glass with rear-window defroster, B-pillar assist handle (passenger-side, standard on Low Roof), available sliding passenger-side door, available high-strength laminated glass |
|
Fuel Economy and Performance |
EPA-estimated 14/17 MPG (city/highway, 3.5L PFDi V6), 275 HP and 400 lb-ft (3.5L PFDi), 310 HP and 410 lb-ft (3.5L EcoBoost), 0–60 mph in 6.8 seconds, top speed 97 mph, max payload 3,475 lbs, GVWR 9,250–10,360 lbs, 3 drive modes (Normal, Eco, Tow/Haul) |
|
Cargo Volume |
100.3 cu.ft. (Low Roof), 141.7 cu.ft. (Medium Roof), 170.4 cu.ft. (High Roof) behind last row |
|
Fuel Tank |
25.0 gal, 31.0 gal with available extended range fuel tank |
|
Weight |
5,423 lbs (Low Roof, RWD) |
|
Width |
81.3 in. (excluding mirrors) |
|
Length |
235.5 in. (Long), 263.9 in. (Extended) |
|
Max Height |
82.4 in. (Low Roof), 99.2 in. (Medium Roof), 108.6 in. (High Roof) |
|
Ground Clearance |
6.1 in. |
