Specification

Details

Model

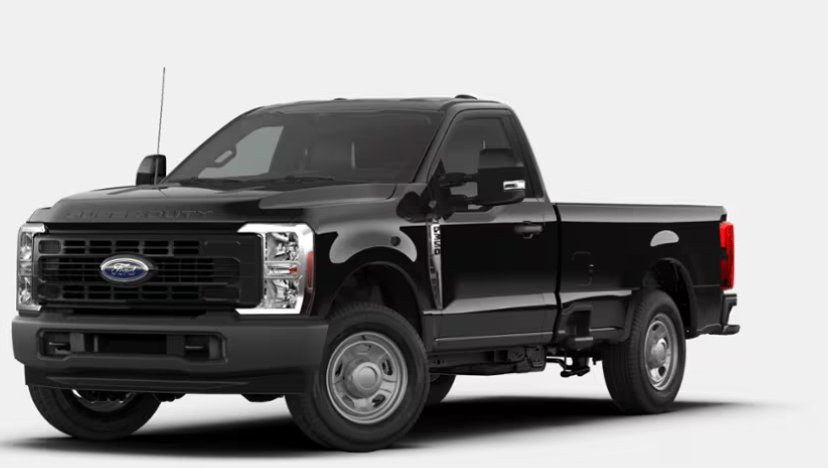

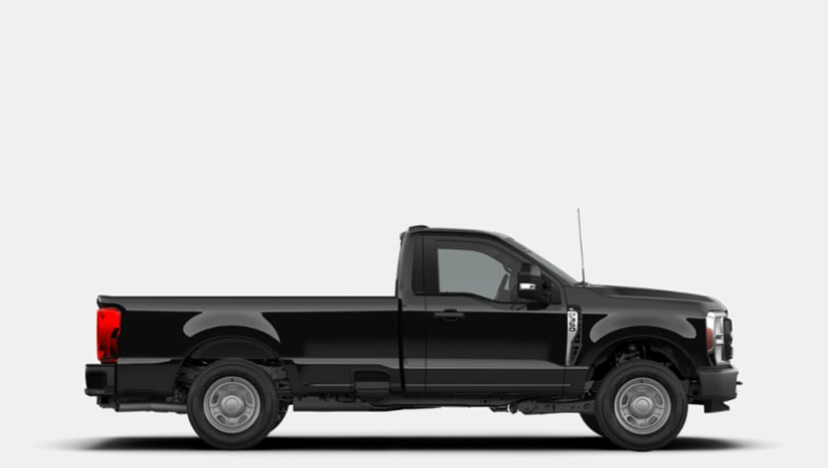

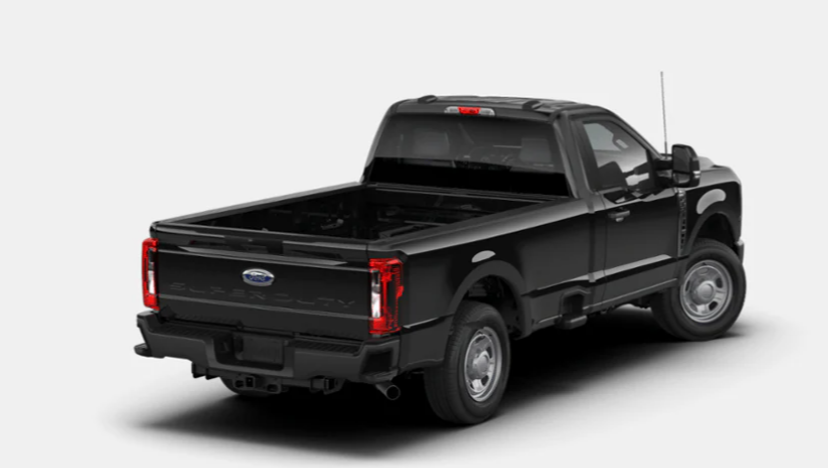

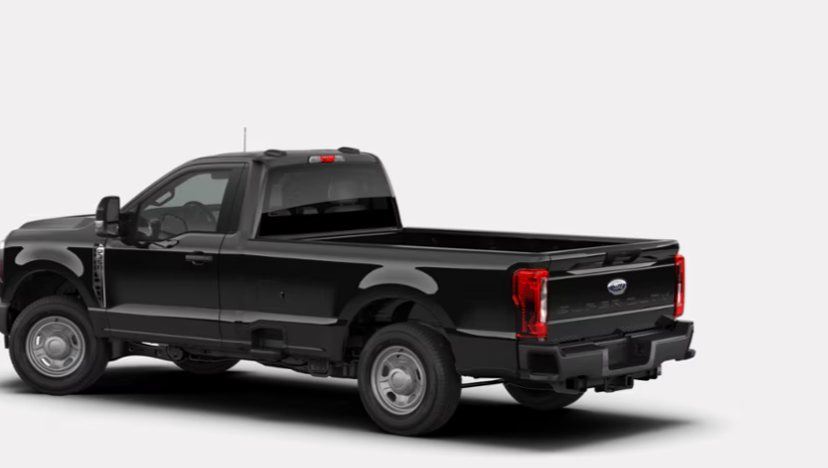

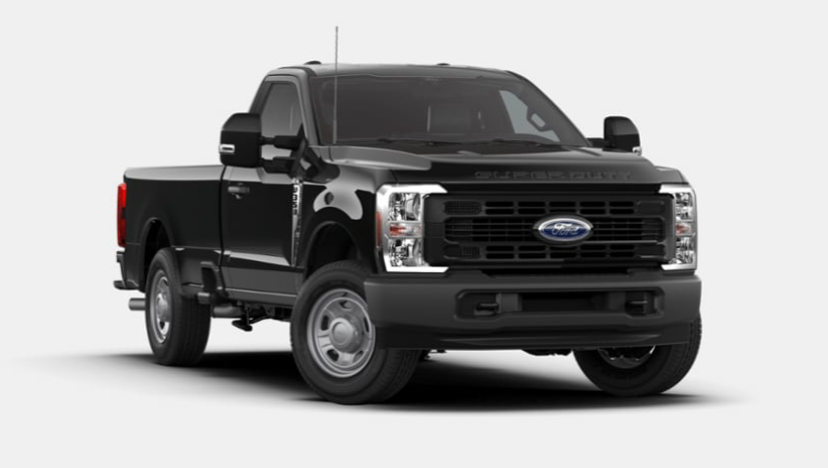

F-350 XL

Vehicle Category

Heavy Duty Pickup

Fuel Type

Gasoline, Diesel

Application

Work truck, heavy duty

Starting Price (2025)

$47,675 (SRW), $49,175 (DRW), includes destination charge

Color Options

Exterior: Oxford White, Iconic Silver, Carbonized Gray, Agate Black Metallic, Rapid Red Metallic, Star White Metallic, Argon Blue Metallic, Marsh Gray Metallic; Interior: Medium Dark Slate vinyl

Specification

Details

Engine

6.8L 2V DEVCT NA PFI V8 (405 HP, 445 lb-ft), available 7.3L 2V DEVCT NA PFI V8 (430 HP, 485 lb-ft), 6.7L Power Stroke V8 Turbo Diesel (475 HP, 1,050 lb-ft), 6.7L High Output Power Stroke V8 Turbo Diesel (500 HP, 1,200 lb-ft)

Gross Horsepower

405 HP @ 5000 rpm (6.8L), 430 HP @ 5500 rpm (7.3L), 475 HP @ 2600 rpm (6.7L), 500 HP @ 2600 rpm (6.7L High Output)

Torque

445 lb-ft @ 4000 rpm (6.8L), 485 lb-ft @ 4000 rpm (7.3L), 1,050 lb-ft @ 1600 rpm (6.7L), 1,200 lb-ft @ 1600 rpm (6.7L High Output)

Transmission Type

TorqShift-G 10-speed automatic (gas), TorqShift 10-speed automatic (diesel)

Drivetrain

Rear-Wheel Drive (4x2), available Four-Wheel Drive (4x4); SRW or DRW configurations

Max Towing Capacity

28,000 lbs (SRW, 6.7L High Output diesel, gooseneck), 38,000 lbs (DRW, 6.7L High Output diesel, gooseneck), 21,000 lbs conventional (SRW), 23,000 lbs conventional (DRW)

Specification

Details

Front Suspension

Independent twin I-beam (4x2) or mono-beam (4x4) with coil springs, stabilizer bar

Rear Suspension

Solid axle with leaf springs

Brakes

Four-wheel disc brakes with ABS, electronic brakeforce distribution

Specification

Details

Seating

3 (Regular Cab), 5-6 (SuperCab, Crew Cab)

Interior Features

8-inch touchscreen with SYNC 4, Apple CarPlay, Android Auto, 4-speaker audio system, USB ports (2 "A"), single-zone manual climate control, vinyl seats, 8-way manual driver seat, 6-way manual passenger seat, 40/20/40 front bench seat (Regular Cab), 60/40 split-folding rear seat (SuperCab, Crew Cab), Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, pedestrian detection, forward collision warning, rearview camera, auto high beams), 8-inch digital gauge display, cruise control, under-seat storage (SuperCab, Crew Cab), available trailer brake controller

Exterior Features

17-inch argent painted steel wheels (SRW), 17-inch forged polished aluminum wheels (DRW), 245/75R17 all-terrain tires (SRW), 245/75R17 all-terrain tires (DRW), halogen headlights, LED taillights, 6.75-ft or 8-ft bed (50.6 in. wide), manual tailgate lock, manual sideview mirrors, black grille, black bumpers, available High-Capacity Trailer Tow Package (hitch, 7-pin connector, trailer sway control), available XL Off-Road Package (skid plates, all-terrain tires, SRW only)

Fuel Economy and Performance

EPA-estimated 11/16 MPG (city/highway, 6.8L 4x2), 10/15 MPG (7.3L 4x4), 10/14 MPG (6.7L diesel 4x4), 405 HP and 445 lb-ft (6.8L), 430 HP and 485 lb-ft (7.3L), 475 HP and 1,050 lb-ft (6.7L), 500 HP and 1,200 lb-ft (6.7L High Output), 0–60 mph in 7.5 seconds (6.8L), 7.2 seconds (7.3L), 6.8 seconds (6.7L), 6.5 seconds (6.7L High Output), top speed 110 mph, payload up to 4,000 lbs (SRW), 7,850 lbs (DRW), 5 drive modes (Normal, Eco, Sport, Tow/Haul, Slippery)

Cargo Volume

65.4 cu.ft. (6.75-ft bed), 81.0 cu.ft. (8-ft bed)

Fuel Tank

34.0 gal, available 48.0 gal

Weight

6,300 lbs (Regular Cab 4x2, 6.8L, SRW), 7,300 lbs (Crew Cab 4x4, 6.7L High Output, SRW), 7,600 lbs (Crew Cab 4x4, 6.7L High Output, DRW)

Width

85.3 in. (2166 mm, mirrors folded, SRW), 96.0 in. (DRW, excluding mirrors)

Length

231.8 in. (Regular Cab, 8-ft bed), 238.2 in. (SuperCab, 6.75-ft bed), 250.0 in. (Crew Cab, 6.75-ft bed), 266.2 in. (Crew Cab, 8-ft bed)

Max Height

79.3 in. (4x2, SRW), 81.5 in. (4x4, SRW), 81.0 in. (4x4, DRW)

Ground Clearance

8.7 in. (SRW), 8.3 in. (DRW)
