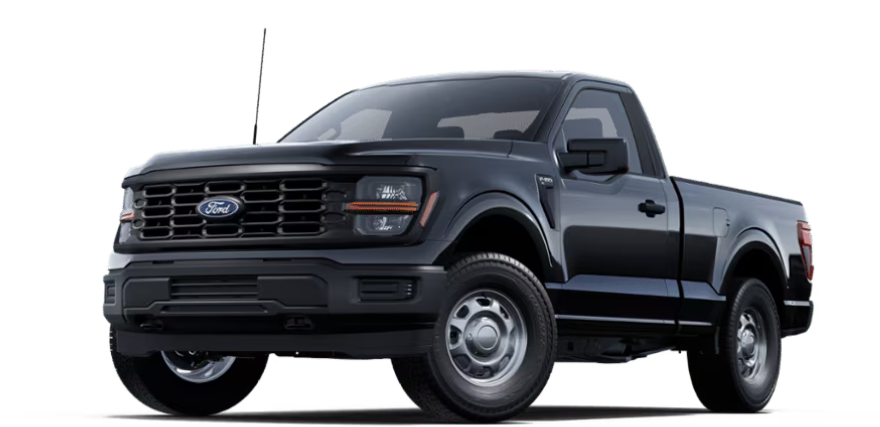

2025 Ford F-150 XL – Full-Size Pickup with Rugged Utility
Specifications
|
Specification |
Details |
|
Model |
F-150 XL |
|
Vehicle Category |
Full Size Pickup |
|
Fuel Type |
Gasoline |
|
Application |
Crossover, urban driving, full-size |
|
Starting Price (2025) |
$38,810, includes destination charge |
|
Color Options |
Exterior: Oxford White, Iconic Silver, Carbonized Gray, Agate Black Metallic, Antimatter Blue Metallic, Rapid Red Metallic, Atlas Blue Metallic; Interior: Medium Dark Slate cloth |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
2.7L EcoBoost V6 (325 HP, 400 lb-ft), available 5.0L V8 (400 HP, 410 lb-ft), 3.5L EcoBoost V6 (400 HP, 500 lb-ft) |
|
Gross Horsepower |
325 HP @ 5000 rpm (2.7L), 400 HP @ 6000 rpm (5.0L), 400 HP @ 6000 rpm (3.5L) |
|
Torque |
400 lb-ft @ 3000 rpm (2.7L), 410 lb-ft @ 4250 rpm (5.0L), 500 lb-ft @ 3100 rpm (3.5L) |
|
Transmission Type |
10-speed automatic |
|
Drivetrain |
Rear-Wheel Drive (4x2), available Four-Wheel Drive (4x4) |
|
Max Towing Capacity |
13,500 lbs with 3.5L EcoBoost and Max Trailer Tow Package, 13,000 lbs with 5.0L V8, 8,200 lbs with 2.7L EcoBoost |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double-wishbone with coil-over shocks, stabilizer bar |
|
Rear Suspension |
Solid axle with leaf springs |
|
Brakes |
Four-wheel disc brakes with ABS, electronic brakeforce distribution |
Components & Features
|
Specification |
Details |
|
Seating |
3 (Regular Cab), 5-6 (SuperCab, SuperCrew) |
|
Interior Features |
12-inch touchscreen with SYNC 4, wireless Apple CarPlay, Android Auto, 4-speaker audio system, USB ports (2 "A"), single-zone manual climate control, cloth seats, 8-way manual driver seat, 6-way manual passenger seat, 40/20/40 front bench seat (Regular Cab), 60/40 split-folding rear seat (SuperCab, SuperCrew), Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, pedestrian detection, forward collision warning, rear-view camera, auto high beams), 12-inch digital gauge display, cruise control, under-seat storage (SuperCab, SuperCrew) |
|
Exterior Features |
17-inch silver steel wheels, 255/70R17 all-season tires, LED reflector headlights, LED taillights, 5.5-ft, 6.5-ft, or 8-ft bed (50.6 in. wide), Class IV trailer hitch, manual sideview mirrors, black grille, black bumpers, Pro Access Tailgate |
|
Fuel Economy and Performance |
EPA-estimated 19/25 MPG (city/highway, 2.7L 4x2), 18/23 MPG (2.7L 4x4), 16/24 MPG (5.0L 4x4), 18/23 MPG (3.5L 4x4), 325 HP and 400 lb-ft (2.7L), 400 HP and 410 lb-ft (5.0L), 400 HP and 500 lb-ft (3.5L), 0–60 mph in 6.8 seconds (2.7L), 6.0 seconds (5.0L), 5.9 seconds (3.5L), top speed 110 mph, payload 2,120 lbs, 3 drive modes (Normal, Eco, Sport) |
|
Cargo Volume |
52.8 cu.ft. (5.5-ft bed), 62.3 cu.ft. (6.5-ft bed), 77.4 cu.ft. (8-ft bed) |
|
Fuel Tank |
23.0 gal (Regular Cab), 26.0 gal (SuperCab, SuperCrew), available 36.0 gal |
|
Weight |
4,021 lbs (Regular Cab 4x2, 2.7L), 4,648 lbs (SuperCrew 4x4, 2.7L), 4,707 lbs (SuperCrew 4x4, 5.0L), 4,813 lbs (SuperCrew 4x4, 3.5L) |
|
Width |
79.9 in. (2029 mm, mirrors folded) |
|
Length |
209.1 in. (Regular Cab, 6.5-ft bed), 231.7 in. (SuperCab, 6.5-ft bed), 243.5 in. (SuperCrew, 8-ft bed) |
|
Max Height |
75.6 in. (4x2), 77.2 in. (4x4) |
|
Ground Clearance |
8.2 in. |
