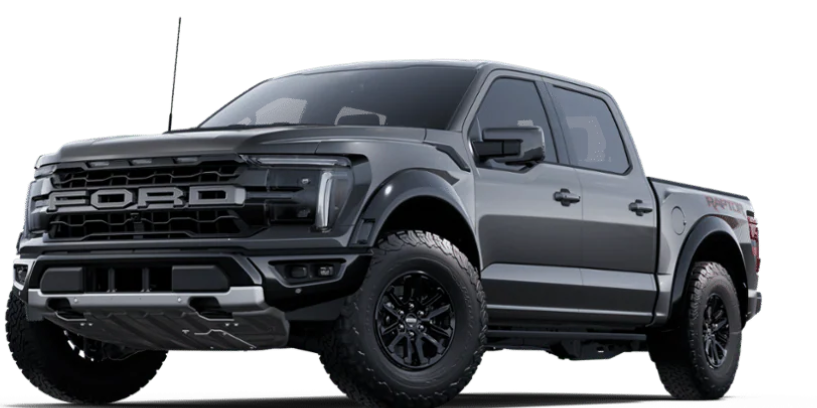

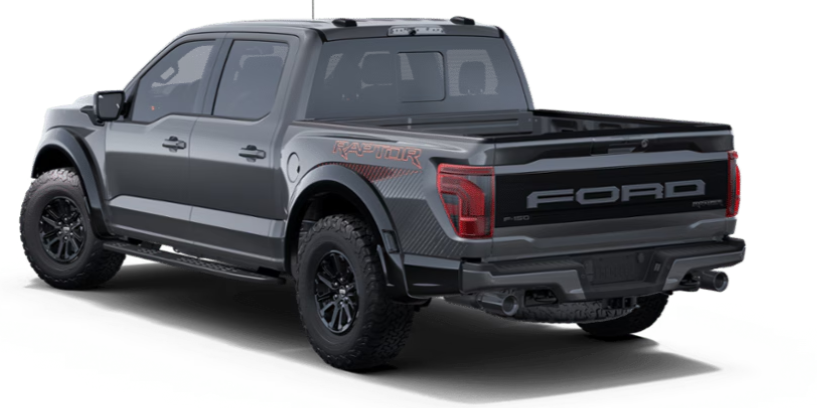

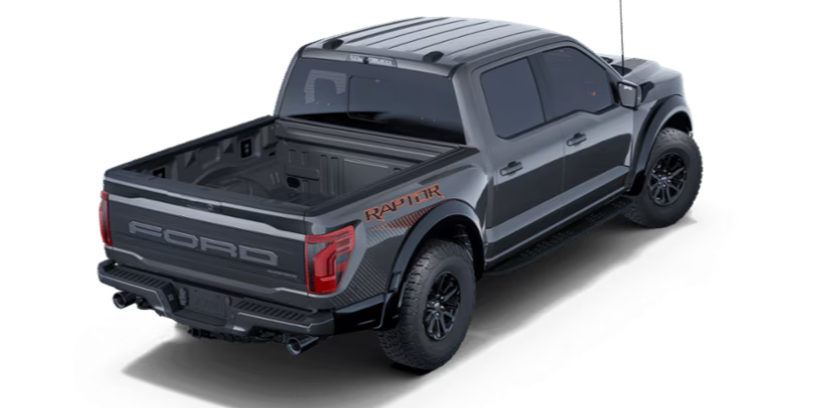

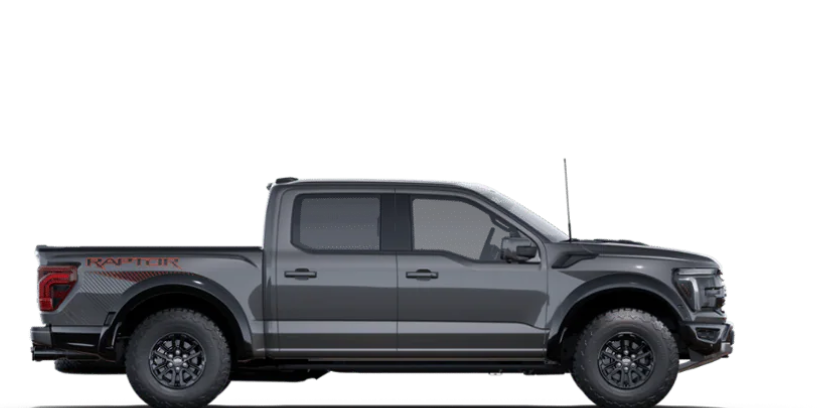

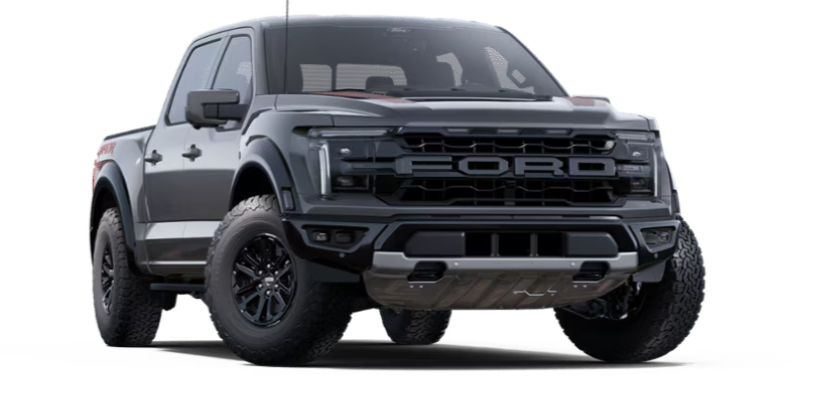

2025 Ford F-150 Raptor – Full-Size Pickup with Extreme Off-Road Performance
Specifications
|
Specification |
Details |
|
Model |
F-150 Raptor |
|
Vehicle Category |
Full Size Pickup |
|
Fuel Type |
Gasoline |
|
Application |
Crossover, urban driving, full-size, off-road |
|
Starting Price (2025) |
$79,005, includes destination charge |
|
Color Options |
Exterior: Oxford White, Iconic Silver, Carbonized Gray, Agate Black Metallic, Rapid Red Metallic, Avalanche, Shelter Green, Raptor R: Shadow Black, Code Orange; Interior: Black leather with orange accents |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3.5L EcoBoost V6 (450 HP, 510 lb-ft), available 5.2L Supercharged V8 (720 HP, 640 lb-ft, Raptor R) |
|
Gross Horsepower |
450 HP @ 6000 rpm (3.5L), 720 HP @ 6500 rpm (5.2L) |
|
Torque |
510 lb-ft @ 3100 rpm (3.5L), 640 lb-ft @ 4250 rpm (5.2L) |
|
Transmission Type |
10-speed automatic |
|
Drivetrain |
Four-Wheel Drive (4x4) with Hi-Lock transfer case |
|
Max Towing Capacity |
8,200 lbs |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double-wishbone with 2.5-inch FOX Dual-Valve shocks, stabilizer bar |
|
Rear Suspension |
Five-link coil with 3.1-inch FOX Dual-Valve shocks |
|
Brakes |
Four-wheel disc brakes with ABS, electronic brakeforce distribution |
Components & Features
|
Specification |
Details |
|
Seating |
5 passengers (SuperCrew) |
|
Interior Features |
12-inch touchscreen with SYNC 4A, wireless Apple CarPlay, Android Auto, 14-speaker B&O Unleashed sound system, SiriusXM with 3-month trial, USB ports (2 "A", 2 "C"), dual-zone automatic climate control, leather seats with orange accents, heated and ventilated front seats, 10-way power driver seat with memory, 8-way power passenger seat, 60/40 split-folding rear seat, Intelligent Access with push-button start, remote start, heated steering wheel, 12-inch digital gauge display, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, pedestrian detection, forward collision warning, blind-spot monitoring, rear cross-traffic alert, lane-keeping system, rear parking sensors, auto high beams, adaptive cruise control, lane-centering assist), 360-degree camera, wireless charging pad, Pro Power Onboard (2.0 kW), under-seat storage, Trail Control, Trail 1-Pedal Drive, Trail Turn Assist, BlueCruise hands-free driving (90-day trial) |
|
Exterior Features |
17-inch beadlock-capable wheels, 35-inch all-terrain tires (37-inch with Raptor R), LED projector headlights, LED taillights, 5.5-ft bed (50.6 in. wide), power tailgate lock, power-folding sideview mirrors (heated, with turn signals), Raptor-specific grille, skid plates, tow hooks, sport mud flaps, spray-in bedliner, zone lighting, cast-aluminum running boards, Pro Access Tailgate |
|
Fuel Economy and Performance |
EPA-estimated 14/18 MPG (city/highway, 3.5L 4x4), 450 HP and 510 lb-ft (3.5L), 720 HP and 640 lb-ft (5.2L Raptor R), 0–60 mph in 5.7 seconds (3.5L), 4.4 seconds (5.2L), top speed 120 mph, payload up to 1,675 lbs, 7 drive modes (Normal, Eco, Sport, Tow/Haul, Slippery, Off-Road, Baja) |
|
Cargo Volume |
52.8 cu.ft. (5.5-ft bed) |
|
Fuel Tank |
36.0 gal |
|
Weight |
5,517 lbs (SuperCrew 4x4, 3.5L), 5,814 lbs (SuperCrew 4x4, 5.2L Raptor R) |
|
Width |
86.3 in. (2192 mm, mirrors folded) |
|
Length |
232.7 in. (SuperCrew, 5.5-ft bed) |
|
Max Height |
78.5 in. (4x4) |
|
Ground Clearance |
12.0 in. |
