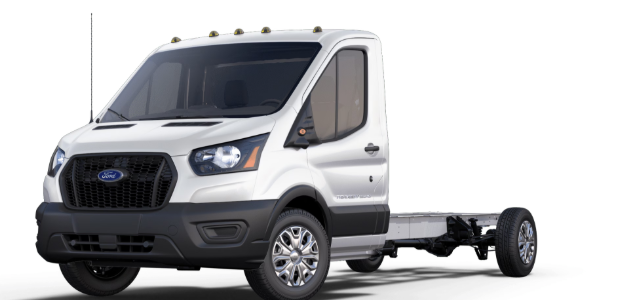

2025 Ford E-Transit Chassis Cab – Electric Commercial Van for Custom Upfits
Specifications
|
Specification |
Details |
|
Model |
E-Transit Chassis Cab |
|
Vehicle Category |
Electric Van |
|
Fuel Type |
Electric |
|
Application |
Commercial, electric, delivery |
|
Starting Price (2025) |
$46,200, excludes destination/delivery fee, taxes, and optional equipment |
|
Color Options |
Exterior: Oxford White, Carbonized Gray, Agate Black, Abyss Gray, Avalanche, Ingot Silver, School Bus Yellow; Interior: Dark Palazzo Gray vinyl or cloth |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Single electric motor (266 HP, 317 lb-ft) |
|
Gross Horsepower |
266 HP |
|
Torque |
317 lb-ft |
|
Transmission Type |
Single-speed automatic |
|
Drivetrain |
Rear-Wheel Drive (RWD) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent MacPherson strut with stabilizer bar |
|

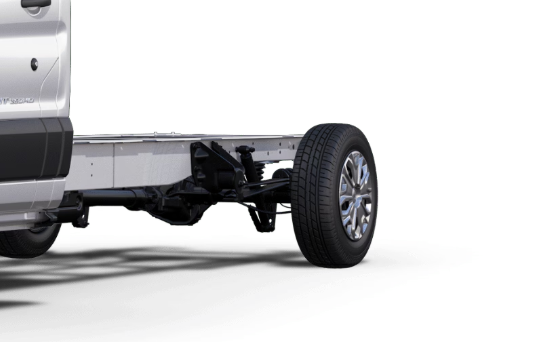

Rear Suspension |
Semi-independent twist-beam with coil springs |
|
Brakes |
Four-wheel disc brakes with ABS, electronic brakeforce distribution |
Components & Features
|
Specification |
Details |
|
Seating |
2 passengers |
|
Interior Features |

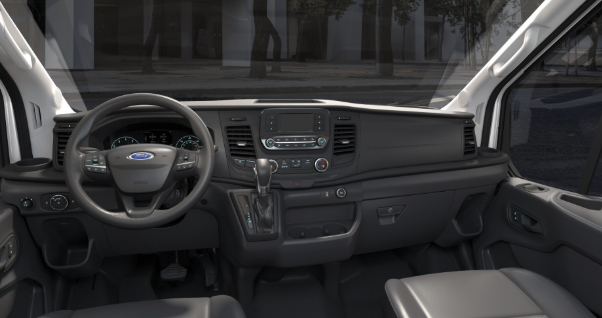

8-inch touchscreen with SYNC 4, wireless Apple CarPlay, Android Auto, USB ports (2 "A"), single-zone manual climate control, vinyl or cloth seats, 6-way manual driver seat, 4-way manual passenger seat, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, pedestrian detection, forward collision warning, lane-keeping system, rearview camera, auto high beams), available adaptive cruise control, Ford Pro Telematics with complimentary vehicle health alerts, real-time navigation, Intelligent Access with push-button start, available Pro Power Onboard (2.4 kW) |
|
Exterior Features |

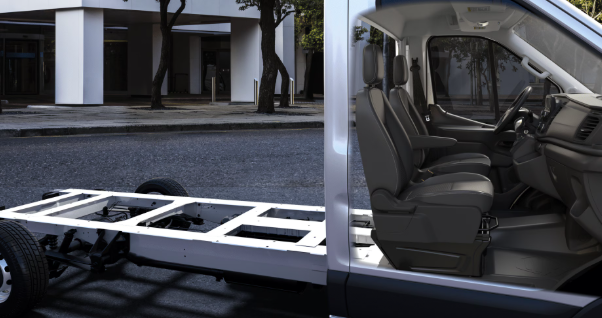

16-inch steel wheels with hubcaps, 235/65R16 all-season tires, halogen headlights, power sideview mirrors, chassis cab configuration for upfit customization, available upfitter interface module |
|
Fuel Economy and Performance |
Estimated range 149–159 miles, 266 HP, 317 lb-ft, 0–60 mph in ~7.5 seconds, top speed 87 mph, max payload 3,960 lbs, GVWR 9,500 lbs, 3 drive modes (Normal, Eco, Slippery) |
|
Cargo Volume |
Varies by upfit configuration |
|
Battery |
68 kWh usable capacity, lithium-ion |
|
Weight |
5,540 lbs (base, without upfit) |
|
Width |
81.1 in. (excluding mirrors) |
|
Length |
217.8 in. (regular length), 235.5 in. (extended length) |
|
Max Height |
83.1 in. |
|
Ground Clearance |
6.1 in. |
