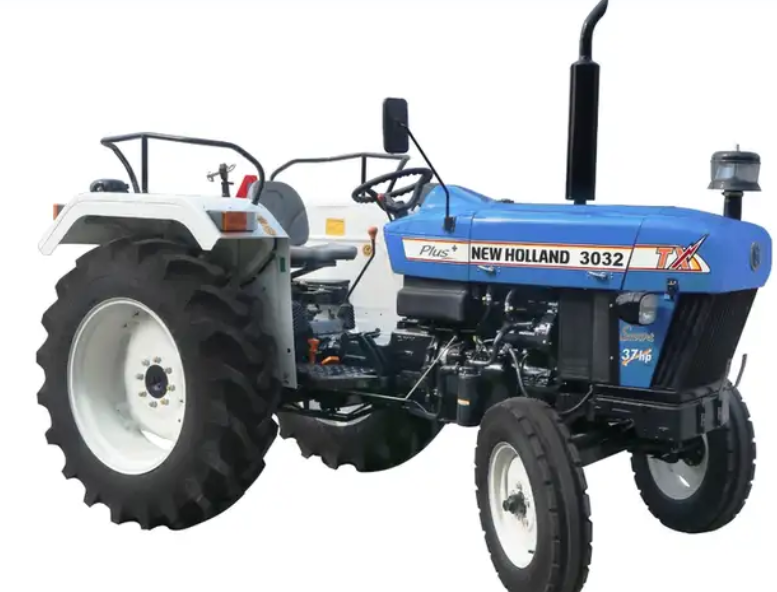

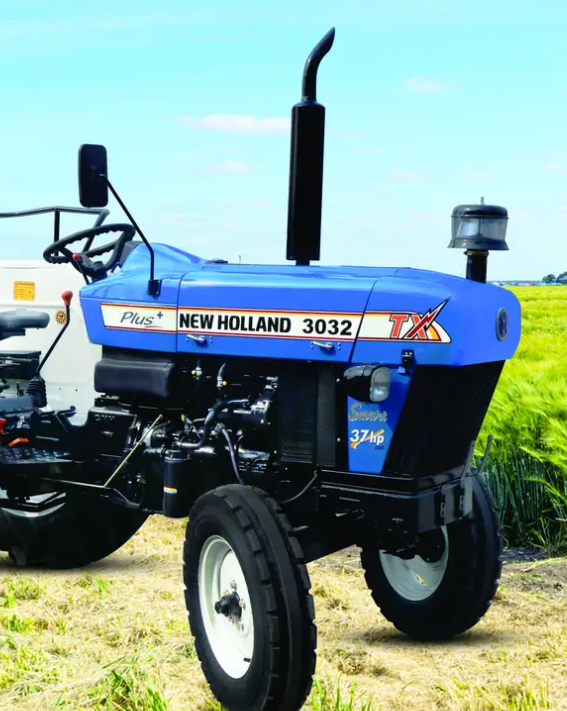

3032 TX Smart – 2WD Utility Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
3032 TX Smart |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
T-IIIA, S 324 |
|
Engine Type |
Naturally Aspirated |
|
Max Torque |
137.4 Nm |
|
Engine Rated RPM |
2000 |
|
Clutch Type |
Single |
|
Softek Clutch |
Yes |
|
Transmission Type |
Constant Mesh AFD Side Shift |
|
Drive Type |
2WD |
|
Number of Gears |
8F + 2R |
|
Power Range |
37 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi Disc Brake |
|
Steering Type |
Mechanical/Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 16 in (152.4 mm x 406.4 mm) |
|
Rear Tyres |
13.6 x 28 in (345.44 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1100 kg |
|
Hydraulic Control System |
DRC Valve with Lift-O-Matic |
|
PTO Power |
33 HP |
|
PTO Type |
Multi Speed & Reverse |
|
Fuel Tank Capacity |
42 L |
|
Battery |
75 Ah |
|
Alternator |
35 Amp |
|
Air Cleaner Type |
Oil Bath with Pre-Cleaner |
|
Front Axle Type |
Heavy Duty |
|
Rear Axle Type |
Straight Axle Planetary Drive |
|
Power Steering |
Power Steering |
|
Neutral Safety Switch |
Yes |
|
Clutch Safety Lock |
Yes |
|
Rear View Mirror |
Antiglare |
|
Tipping Trailer Pipe |
Yes |
|
Fuel Tank Type |
Polymer |
|
Optional Features |
Paddy Special - Double Metal Face Sealing |
|
Overall Length |
3410 mm |
|
Width |
1790 mm |
|
Height |
2260 mm |
|
Wheelbase |
1920 mm |
|
Ground Clearance |
385 mm |
|
Weight |
1665 kg |
